Introduction to Kubota Guo4 full-feed harvester EX-M

EX-M series products (EX118M/EX118MQ), while meeting the requirements of non-road country four emissions, are equipped with 118.3 horsepower powerful engine, high durability gearbox, chassis lifting system, and a variety of electronic control devices including electronic grain unloading, electronic clutch, automatic throttle, etc., with a feeding capacity of 5Kg/s, which can cope with more and more complex terrain operations, and increase revenue gains for users!

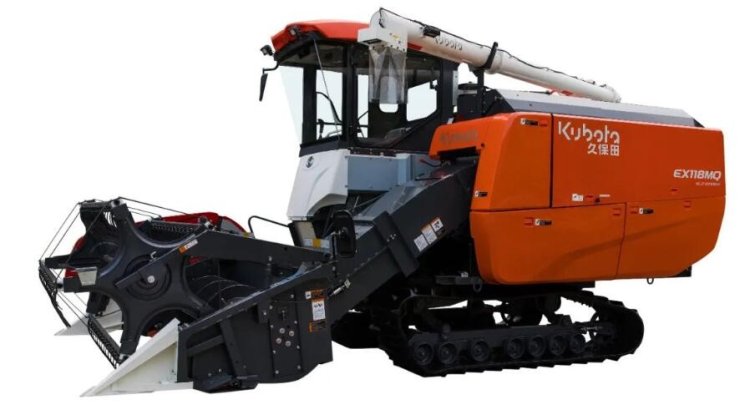

EX118MQ (chassis lifting air conditioning cab type)

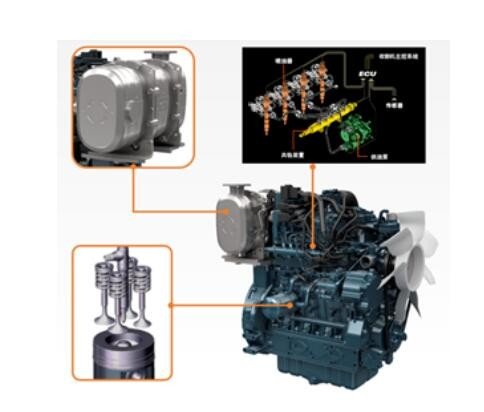

Powerful engine
Kubota 118.3 hp high-pressure common rail engine has strong power.
EGR (exhaust gas recirculation)+DOC (catalytic converter)+DPF (particle trap) is used for tail gas post-treatment, without adding vehicle urea, which is simple and practical.
Kubota's DPF is equipped with automatic regeneration function and parking regeneration function. When the DPF needs to be regenerated, the ECU will judge according to the accumulation degree of particles in the DPF. It is to select the automatic regeneration that the machine works while regenerating or the parking regeneration that requires the user to stop working for manual operation.

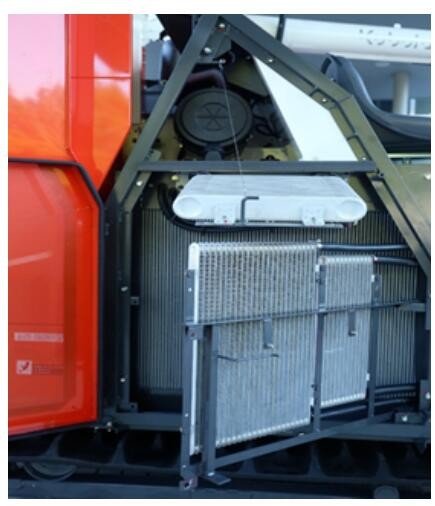

Dual mode radiator automatic cleaning system
Pre-cleaning function: threshing • 15 seconds after the harvest clutch is linked, the radiator fan is forced to reverse once.
Automatic reverse function: according to different heat dissipation requirements of wheat and rice harvests, the reverse cycle of radiator fan can be set as 10 seconds every 3 minutes or 7 seconds every 2 minutes.

The open and closed radiator design is convenient for maintenance and can deeply clean the dust on the radiator surface.

Efficient walking system

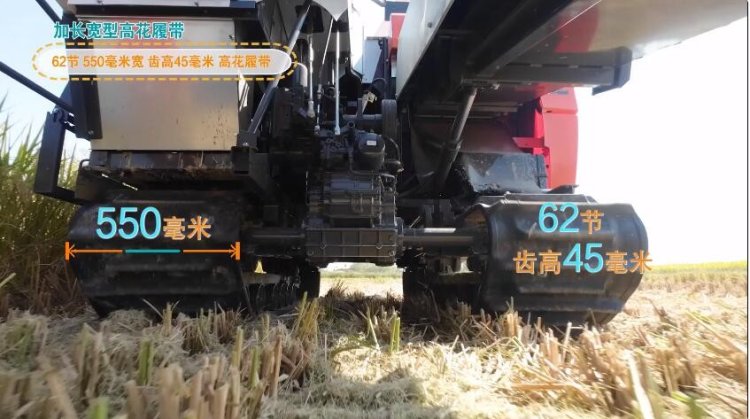

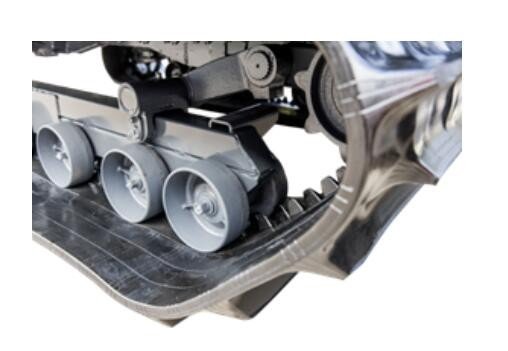

62 sections, 45mm high flower, 550mm wide high durable track; Right-angle beam structure, less mud scraping.

The structure of bilateral bearing wheel is adopted.

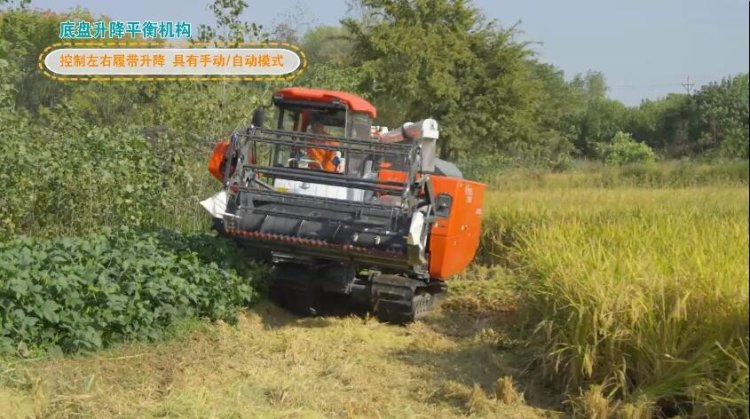

With chassis lifting function, the ground clearance can reach 305mm-415mm.

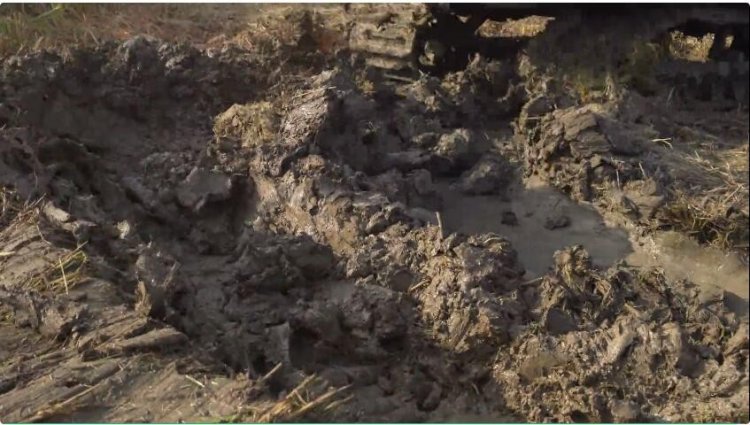

It is matched with an efficient gearbox to greatly improve the passing performance of rotten fields.

High efficiency header

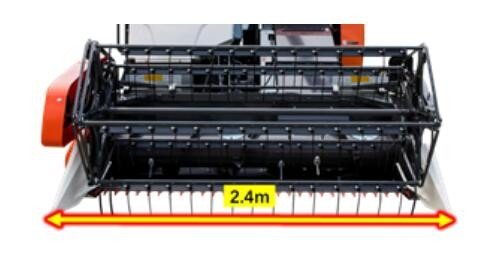

2.4m high efficiency header, sensitive control and quick action.

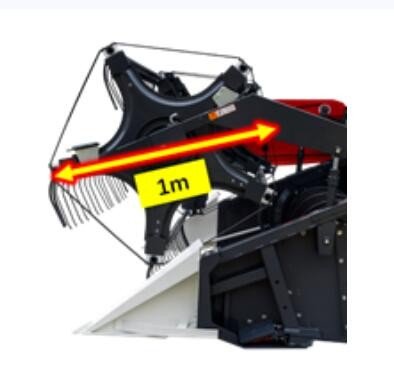

The use of a 1 m diameter spring-tooth reel is not easy to deform and can effectively pick up the fallen crops.

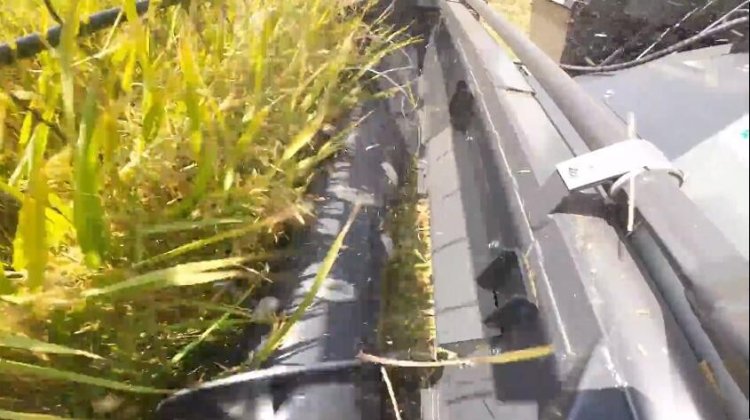

The feeding roller adopts 13 telescopic rods, and the feeding inlet is free of congestion. The green rods and high-yield crops can be fed smoothly.

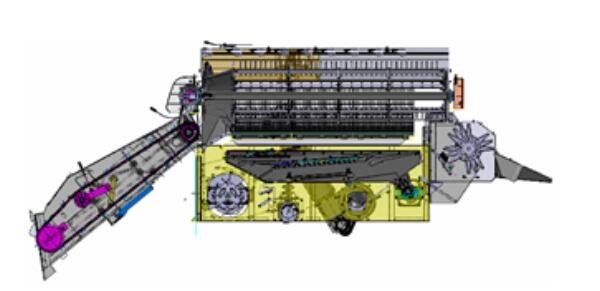

High-efficiency threshing and cleaning mechanism
Classic 1-2-3-4 efficient threshing and cleaning mechanism.
2.21 m large-diameter threshing drum, high efficiency cleaning, low loss, low impurity, and grain return to warehouse.

Large granary
1800L large-capacity granary can reduce the times of grain unloading and improve the operation efficiency.

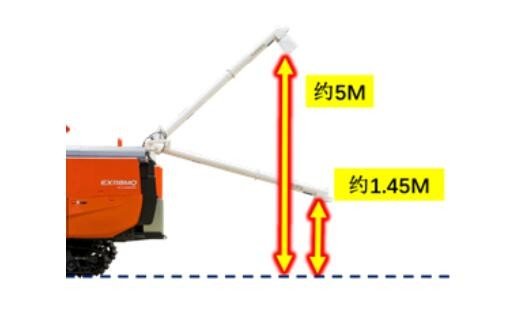

The rotation of grain unloading drum has manual+automatic dual mode (left 99 °, right 236 °) and one-key storage function.

Easy operation of electric control
Electric control clutch: threshing • harvesting clutch, single handle electric control operation, easy and convenient.

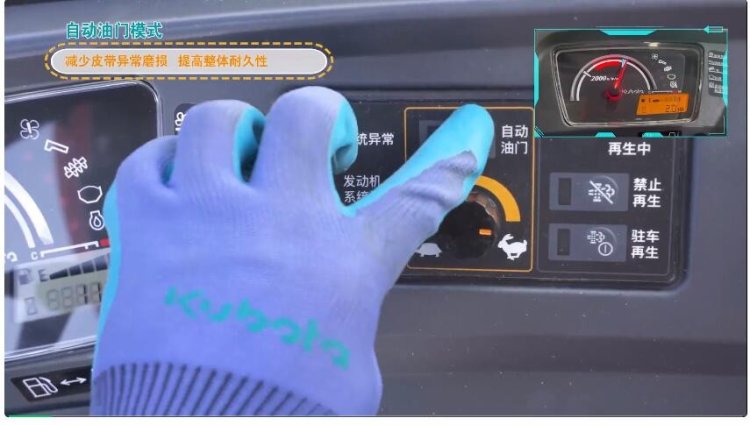

Electronic throttle: manual and automatic modes, precise control, easy operation.

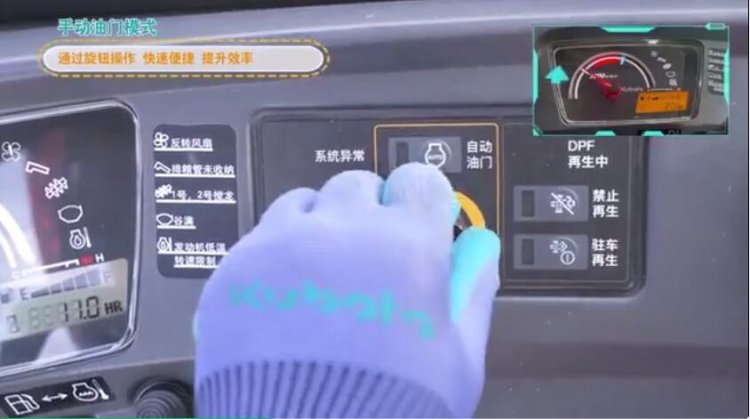

The manual throttle is operated by knob, which is fast and convenient, and improves efficiency
