YTO LZ2604 (G4) tractor 4WD 260HP

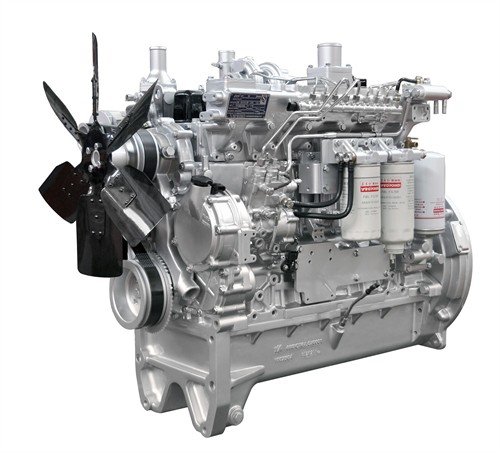

YTO LZ2604 (G4) Wheel Tractor Product Introduction1. Power system: It is equipped with Dongfang Hong YTN9 Common rail supercharged engine, whose emissions meet the requirements of national four standards for non road vehicles, torque reserve is more than 30%, which is powerful, fuel consumption is low, suitable for a variety of operations, and use is more economical.

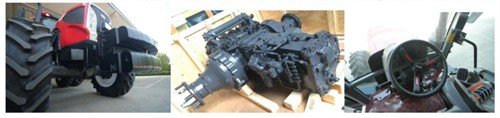

2. Transmission system: Equipped with a power shift transmission system with electronic load shifting and load reversing produced by ZF Company in Germany; Equipped with electronic power shuttle, main transmission with 4-speed power shift function, auxiliary transmission with 6-speed electro-hydraulic control AMT automatic shift, including crawling gear, easy to change direction and shift control; Equipped with 40F+40R gears (including crawling gears), with a minimum speed of 0.3km/h and a maximum speed of 36.8km/h. It has a large number of gears and a reasonable speed arrangement, suitable for various job requirements; Equipped with a gear display with digital display function, it can display the working gear and speed in real-time, making data recording simpler; The front axle adopts imported Carraro heavy-duty front axle, which has high strength and can meet the needs of heavy load operations.

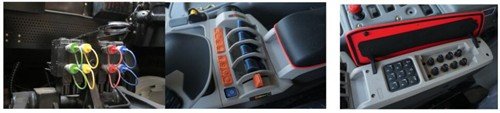

3. Hydraulic system: Closed center load sensing hydraulic system, efficient and energy-saving; Equipped with 4 sets of hydraulic outputs, with electro-hydraulic control and adjustable hydraulic output flow rate. According to different operation needs, the flow rate of each set of hydraulic output valves can be adjusted through a knob; And achieve simultaneous output of different hydraulic powers, with a maximum output flow rate of 152L/min, meeting the needs of large composite agricultural machinery; The hydraulic output operation adopts button control, which is convenient and fast to operate.

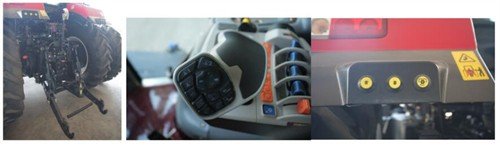

4. Lifting system: With a lifting force greater than 7.5 tons, it can be matched with various heavy-duty composite machinery; Equipped with an electronic control lifting system, it can achieve comprehensive control of force, position, and force, with strong adaptability and high degree of automation for field operations; The operation of the lifting system adopts button control and is integrated into the multi-functional armrest, making it easy and fast to operate; And equipped with external operation buttons, it can control the rise and fall of the lifting system, and can separate and combine the power output; At the same time, the suspension base is equipped with a quick coupling device, making the attachment of the implement more convenient and efficient.

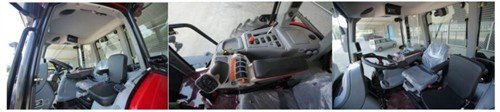

5. Driving and riding system: Luxury and comfortable semi suspended cab with low noise, good visibility, and comfortable driving and riding environment; Equipped with a multi-dimensional adjustable steering wheel and air suspension seats, it can meet the needs of different heights and weights of operators, providing a premium experience; The passenger seat has been newly upgraded, with a larger and thicker seating surface and equipped with seat belts, making driving and riding more comfortable and safe; The right integrated control console and multifunctional control armrest can achieve one click operations such as gear change, throttle control, hydraulic lifting and output, and power output, making it convenient and fast.

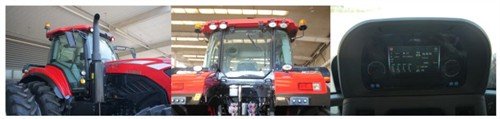

6. Electrical system: The lighting system is newly upgraded, equipped with LED work lights, which have high brightness, low energy consumption, and longer lifespan; Equipped with a rear view imaging system, it can monitor the quality and condition of operations in real-time to meet customer special requirements; Equipped with a multifunctional automatic driving assistance system such as Beidou or GPS, it can easily achieve autonomous and precise operation. The driver's operation intensity is small, and the system's positioning accuracy is high (straight-line driving deviation ≤ ± 2.5 centimeters/kilometer), avoiding missed and heavy plowing. The operation efficiency is high, and the utilization rate of fertilizer, land, etc. is higher.
