Fengjiang fj-ns100 intelligent agricultural machinery Beidou navigation
Fengjiang fj-ns100 intelligent agricultural machinery Beidou navigationTractor navigation, agricultural machinery navigation, fengjiang intelligent tractor navigation system supports curve, straight-line operation mode, and can be upgraded to all unmanned driving mode; medium and low speed, flat underground, walking error is less than ± 2.5cm, high speed, slope accuracy is better than industry standard, automatic calculation, flexible U-turn alignment. It can be adapted to tractors of different brands and models. It is suitable for various agricultural operations, such as ditching, harrowing, sowing, farming, fertilizing, spraying and harvesting. It is easy to install, operate and start. It can effectively improve the working environment of farmers.
Tractor navigation
1. Suitable for multi brand models
Fengjiang intelligent tractor navigation system can be adapted to tractors of different brands and models. It is suitable for various agricultural operations, such as ditching, harrowing, sowing, farming, fertilizing, spraying and harvesting. It is easy to install, operate, start and improve
Farmers' working environment.
2. Accurate assistant driving with high efficiency
Beidou satellite navigation is adopted, with medium and low speed, flat underground, walking error less than ± 2.5cm, high speed, slope accuracy better than industry standard, automatic calculation of connecting line, flexible alignment of U-turn.
3. Stable signal and wide coverage
RTK technology is used for precise positioning, with fast positioning speed and high accuracy. At the same time, it can be equipped with mobile base station to achieve dual coverage of network base station and mobile base station. It also supports ultra long continuous flight, and can upgrade dual card and dual standby.
4. Remote debugging makes maintenance easier
Support intelligent guidance, remote assistance and remote upgrade.

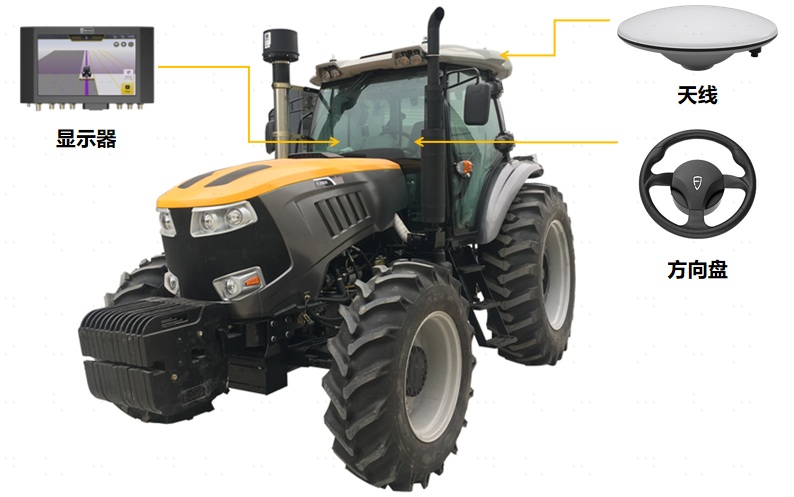

Product configuration:

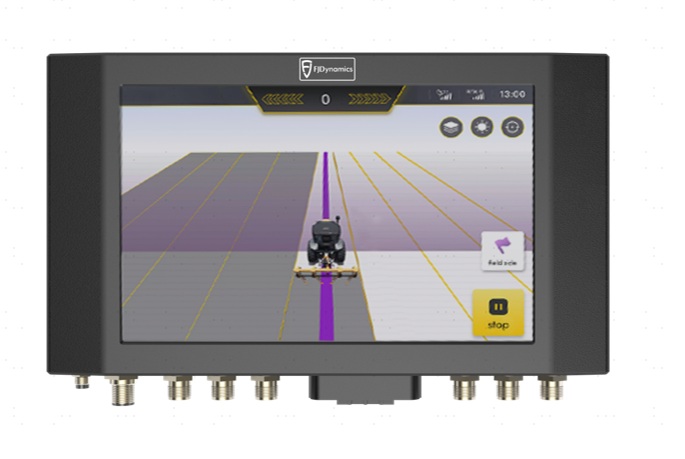

1. Vehicle display terminal
The 10.1-inch high-definition large screen, 700nit without fear of sunlight, the overall protection level reaches IP67, convenient for dot control and function switching, and longer service life of keys in harsh muddy environment.
Tractor navigation display terminal

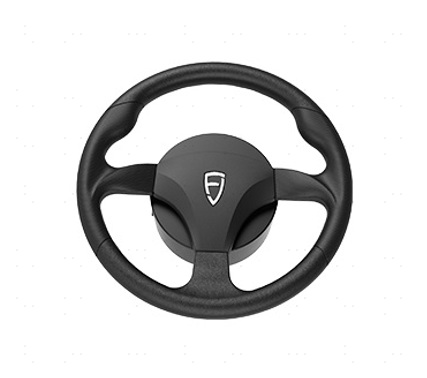

The high torque steering wheel adopts the high torque DC motor, the torque is 2-4 times of the imported motor, and the peak torque is 30n · m, which is suitable for all kinds of terrain with steering resistance.
Tractor Beidou navigation steering wheel
Artificial intelligence algorithm is used to provide high-precision millisecond level sensing data to ensure the operation accuracy of agricultural machinery in slope, high-speed and other working environment.
Product parameters:Component content index
The size of on-board display and control terminal is 300 × 190 × 43mm
The screen is 10.1 inch LCD with LED backlight
1280 × 800 pixels
The power supply voltage is less than 9V ~ 36V
Network module: 4G, compatible with 2G / 3G
Waterproof and dustproof: IP65
Working temperature - 30 ℃ ~ + 70 ℃
Storage temperature - 40 ℃ ~ + 85 ℃
Angle sensor ﹥ waterproof and dustproof ﹥ IP67
Working temperature - 40 ℃ ~ + 85 ℃
Attitude sensor ﹥ power input ﹥ 5V
The power input of the electric steering wheel is less than 12 / 24 VDC
Working temperature - 20 ℃～ + 70 ℃
Storage temperature - 40 ℃～ + 85 ℃
GNSS antenna ﹥ frequency range ﹥ GPS L1 / L2, GLONASS L1 / L2, BDS B1 / B2 / B3
Working temperature - 40 ℃～ + 85 ℃
Storage temperature - 55 ℃～ + 85 ℃
Overall performance < straightness accuracy < ± 62.5px (RMS)
Accuracy of line handover < ± 62.5px (RMS)
