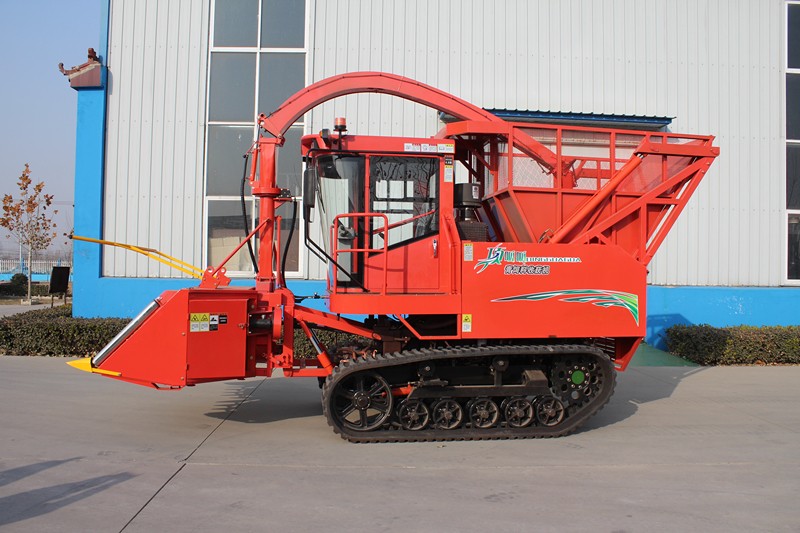

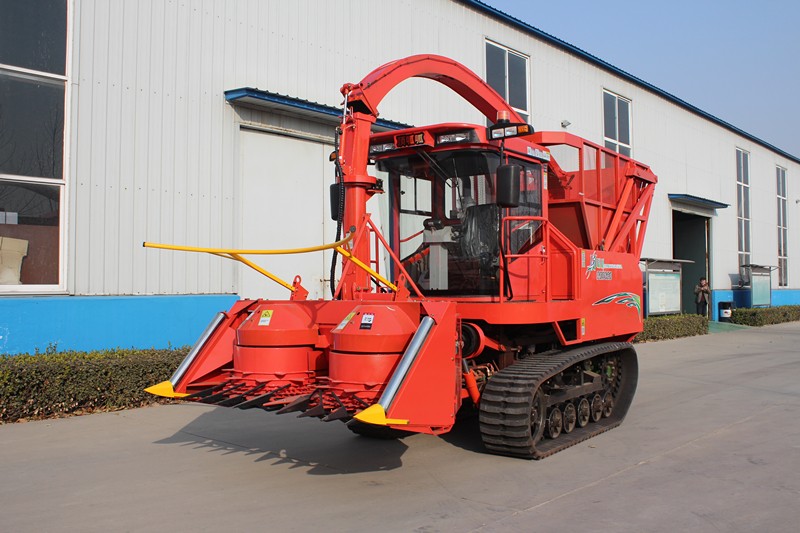

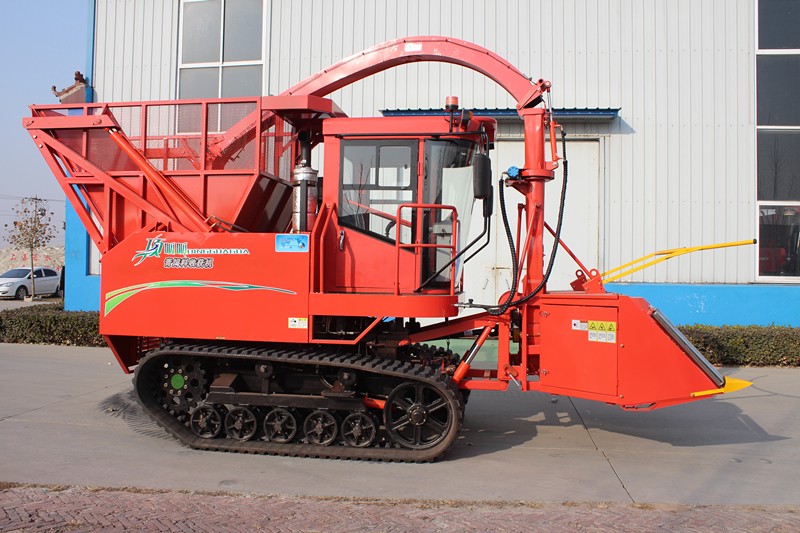

9QZ-2100l Green Feed Harvester

1. The full track is widened and lengthened. The grounding length of a single track is 210cm and the width is 50cm. The large grounding area increases the grip and reduces the chance of vehicle sinking;

2. The full hydraulic drive dual motor walking system is equipped with an independently developed synchronous steering gearbox, which can realize a 360 degree turn in place. When turning around, one track rotates forward and one track reverses to ensure the minimum turning radius;
3. One handle operation can realize forward, backward, left and right rotation. At the same time, multi-purpose keys are centrally controlled on the handle to realize header lifting, material arm rotation and discharge port expansion and contraction;
4. Disc header, which can harvest high rod crops or low rod crops. Six layers of feeding and sowing teeth with different heights, lengths and angles can feed quickly and have strong adaptability; The reasonable speed ratio of dial and cutter ensures the smoothness and continuity of harvesting;
5. The whole vehicle is 6m long, the header is 2.1m wide, and it has a 5M3 material box, which does not need to be followed by the vehicle. The operation is flexible, especially suitable for the harvesting of small plots in the south
6. The original imported Linde hydraulic walking system from Germany is adopted to realize full hydraulic drive walking, which can realize stepless adjustment of operation speed from 0 to 10 km. For example, when harvesting Huangzhu grass, because of high yield per mu and large instantaneous feeding amount, it is necessary to reduce the harvesting speed, and the mechanical walking system can not realize ultra-low speed harvesting, resulting in feeding blockage;
7. It is equipped with a new four connecting rod hitch frame, which greatly improves the distance from the header to the ground, reduces the obstacles of the plot to the whole vehicle during operation, and is separated from the header, which is simple and fast;
8. The independent front windshield is selected in the operating room, which has increased space and wide vision, reduces the dead angle of nearly 60 degrees compared with the general assembled glass, reduces the noise by more than 5 dB, and improves the tightness. The independent LCD in the cab can clearly monitor all working conditions of the whole machine during operation, so as to achieve early warning, early judgment and early prevention;
9. The most mature Weichai wp4-160 HP engine in China is selected, and Bosch electronically controlled high-pressure common rail technology is adopted to meet the requirements of national three emission, environmental protection, energy saving, intelligence, low noise, large output torque and ultra-low failure rate
