Introduction to Kubota Full Feed Harvester EXM Product

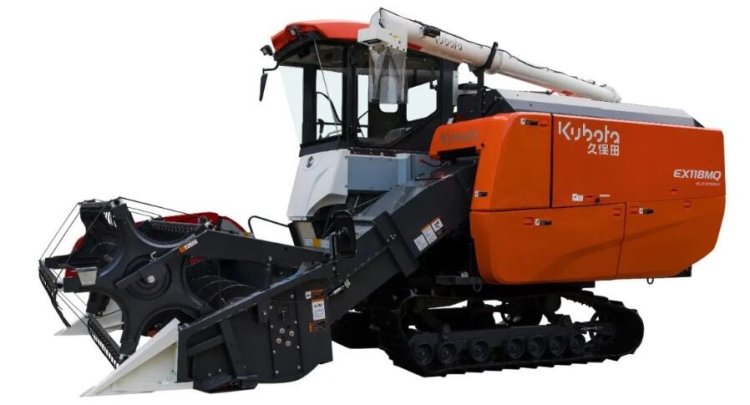

Kubota EX-M Series Crawler HarvesterChassis lifting, increase revenue gain!
In order to meet the demand for more environmentally friendly, efficient, and comfortable agricultural machinery in the domestic market, Suzhou Jiubaotian has launched a new generation of fully fed harvesters.
The EX-M series products (EX118M/EX118MQ), while meeting the four emissions of non road countries, are equipped with a 118.3 horsepower powerful engine, a high durable transmission, a chassis lifting system, and various electronic control devices including electronic grain unloading, electronic clutch, Autothrottle, etc., with a feed rate of 5Kg/s, can cope with more complex terrain operations and increase user income!
Powerful engine

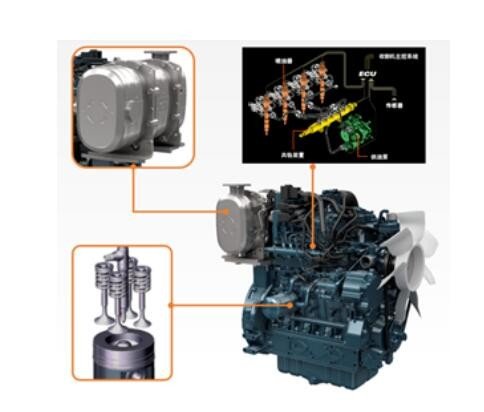

Kubota 118.3 hp Common rail engine, powerful.
The exhaust gas post-treatment adopts EGR (exhaust gas recirculation)+DOC (catalytic converter)+DPF (particle trap), without the need for adding vehicle urea, which is simple and practical.
Kubota's DPF has automatic regeneration function and parking regeneration function. When the DPF needs to be regenerated, the ECU determines based on the accumulation level of particulate matter in the DPF, whether it is an automatic regeneration with the machine working while regenerating or a parking regeneration that requires the user to stop working for manual operation.
Dual mode radiator automatic cleaning system
Automatic reverse function: For different heat dissipation requirements of wheat and rice harvests, the reverse cycle of the radiator fan can be set to 10 seconds every 3 minutes or 7 seconds every 2 minutes.

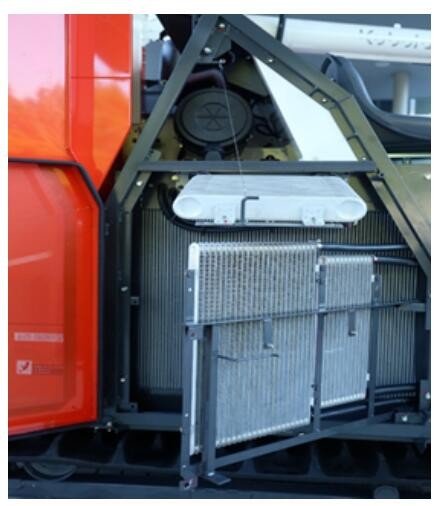

The open and closed radiator design is convenient for maintenance and can deeply clean the dust on the surface of the radiator.

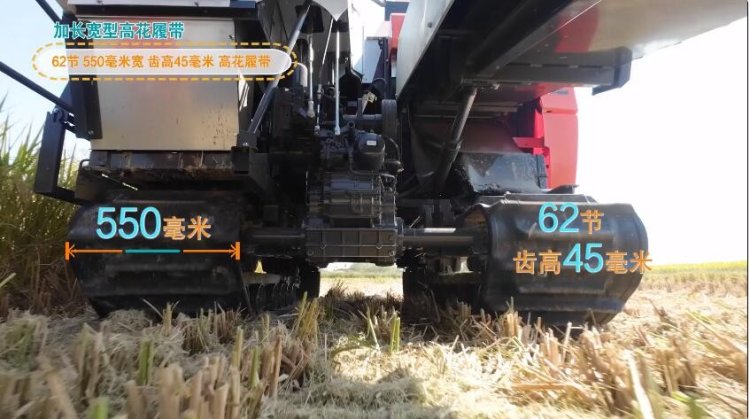

62 section, 45mm high flower, 550mm wide and high durable track; Right angle beam structure, less mud scraping.

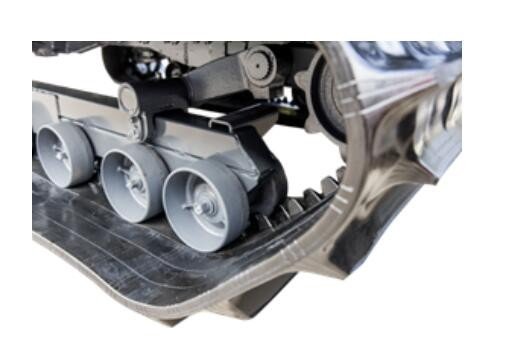

Adopting a bilateral load-bearing wheel structure.

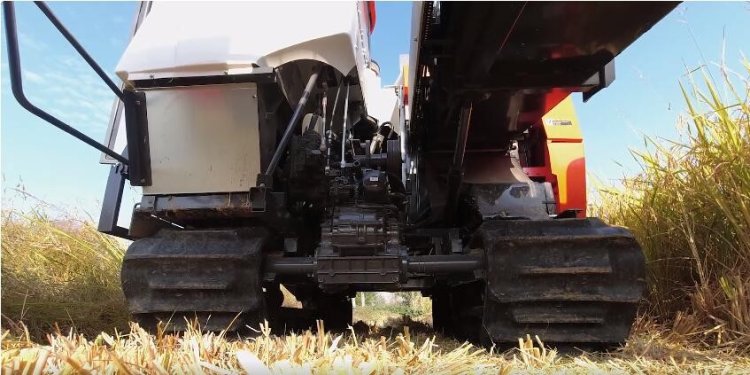

Equipped with chassis lifting function, the ground clearance can reach 305mm-415mm.
Matched with an efficient gearbox, significantly improving the performance of the rotten field.

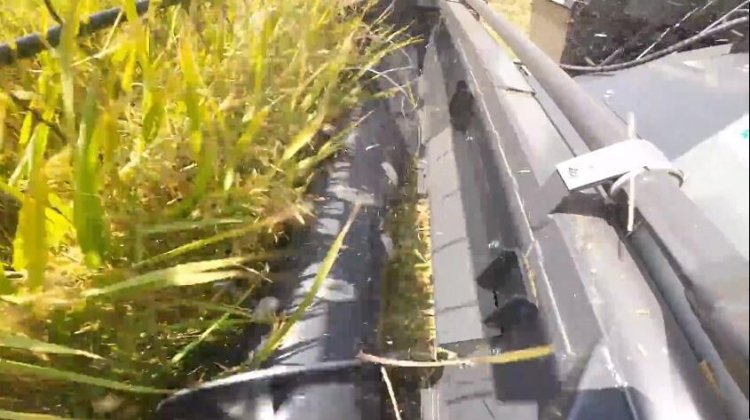

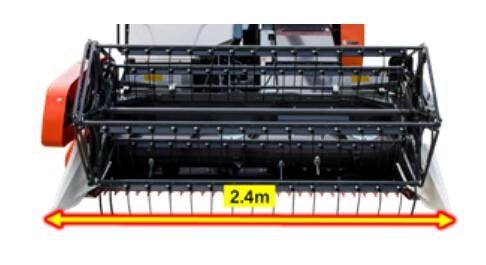

2.4-meter high-efficiency cutting table, with sensitive control and quick action.

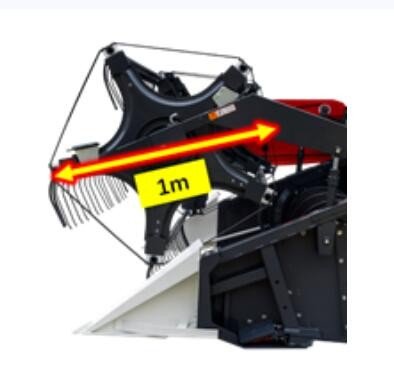

Using a 1 meter diameter toothed reel, it is not easily deformed and can effectively pick up fallen crops.
The feeding drum adopts 13 telescopic rods, and the feeding inlet is not congested. Both green stems and high-yield crops can be fed smoothly.

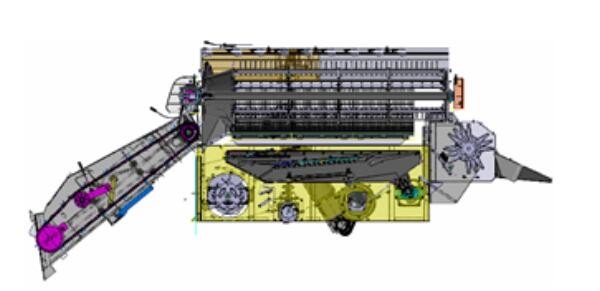

Classic 1-2-3-4 efficient threshing and cleaning mechanism.
2.21 meter large diameter threshing drum, efficient cleaning, low loss, low impurity content, and particle return to the warehouse.
1800L large capacity granary, reducing unloading times and improving operational efficiency.

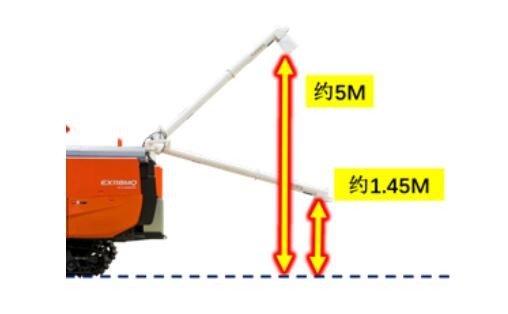

The rotation of the grain unloading drum has a manual+automatic dual mode (left 99 °, right 236 °) and a one button storage function.
Electric control clutch: threshing and harvesting clutch, single handle electric control operation, easy and convenient.
Electronic throttle: manual and automatic modes, precise control, easy operation.

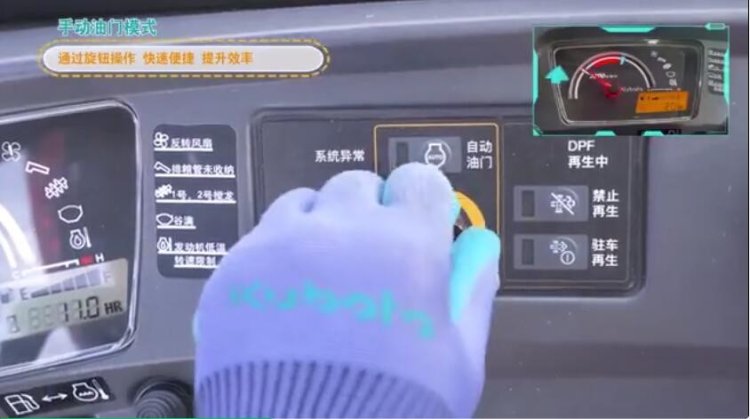

The manual throttle is operated through a knob, which is fast, convenient, and improves efficiency

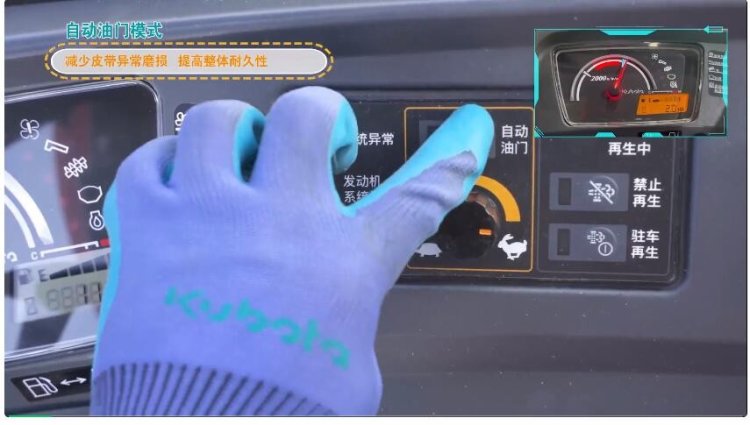

Autothrottle reduces abnormal belt wear and improves overall durability.

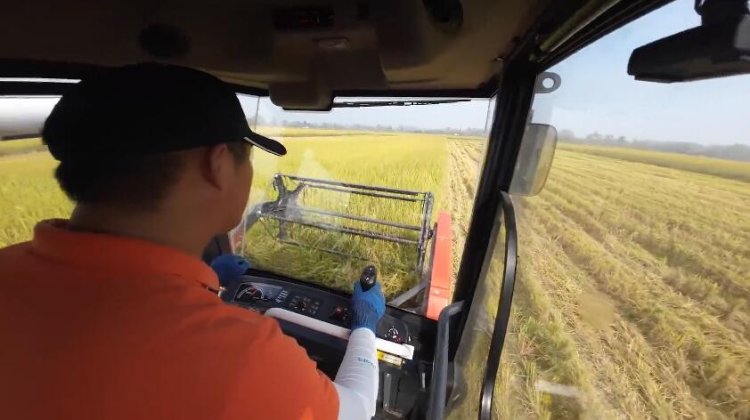

The air-conditioned cab allows for easy operation in both hot and cold conditions.
Strong sealing performance, isolating dust and heat, ensuring comfortable operation.
Increase lighting intensity and improve night work efficiency.
1. For more product details, please consult Kubota Agricultural Machinery (Suzhou) Co., Ltd. or an authorized distributor of Kubota.
2. Kubota Agricultural Machinery (Suzhou) Co., Ltd. Consulting hotline: 400 928 3322
3. Our company reserves the right to change all information, images, and technical specifications on this page at any time. Relevant information is subject to change without prior notice.
