Product introduction of Kubota narrow rear wheel tractor
Introduction to Kubota narrow rear wheel 70-95 HP wheeled tractor
In order to make Kubota tractor more trafficable in some ridging, seeding and intertillage operations, Suzhou Kubota company strengthened its original product advantages, expanded its current sales of 70, 85 and 95 HP series products, and launched products with narrow rear wheels.
M704-k (KQ) flat tire rear wheel optional 11.2-38
M854-k (KQ) flat tire rear wheel optional 12-38
M954-k (KQ) flat tire rear wheel optional 12-38

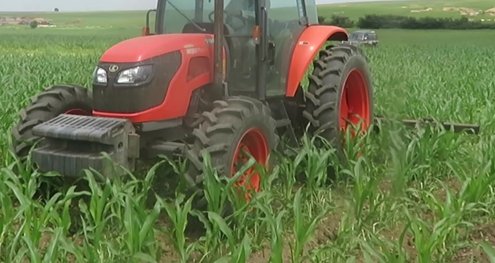

Selecting narrow rear wheels can reduce ridge pressing, seedling scraping and other phenomena, and improve the adaptability of operation.

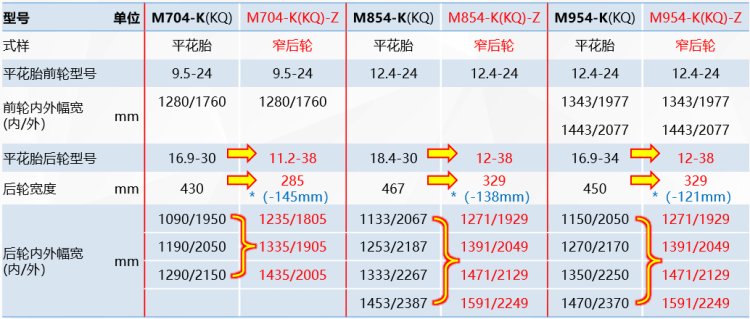

Main change points of product specifications
Note: the inside and outside width of the front wheel of narrow rear wheel tractors is the same as that of conventional flat tire tractors.
Product video
Other traditional advantages
dynamic system

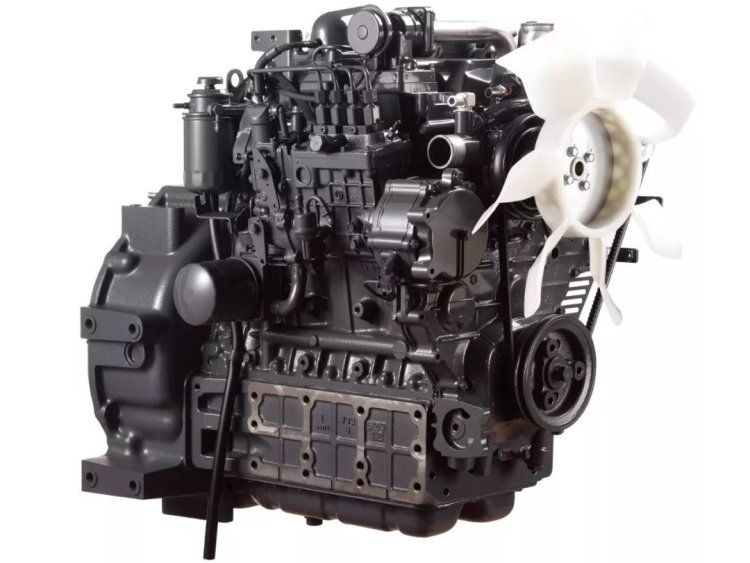

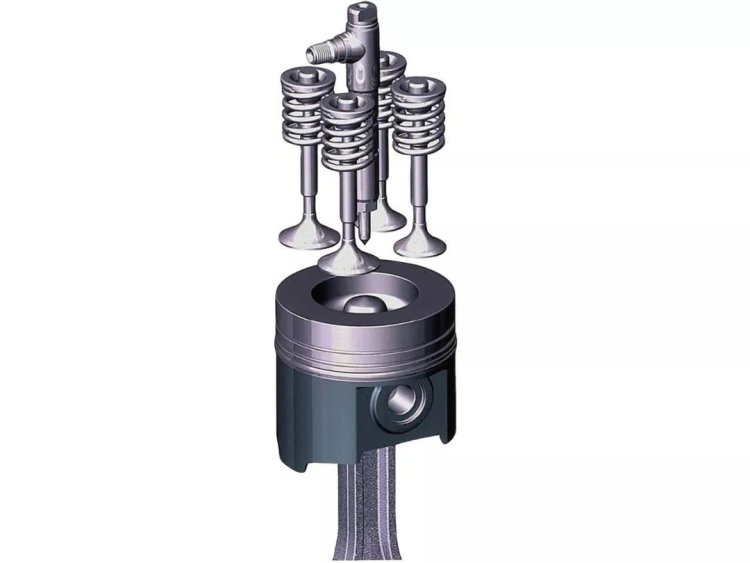

Kubota brand diesel engine has the characteristics of low fuel consumption, low noise, low vibration and low failure rate. It has high output power and long service life. It can not only improve the operation efficiency of users, but also reduce the fuel cost of users.
The sealed bevel gear front axle is adopted to prevent the invasion of mud, water and debris, and the operation is more secure (※ only for four-wheel drive products).
Shuttle shuttle
Shuttle reversing has more advantages in small fields, narrow roads or loading machines and tools before use. The switch between forward and backward can be realized with a small action of the left hand, which is labor-saving and convenient.
Variable speed mechanism
M704-k/kq is equipped with f8+r8, main transmission 3&4 synchronizer, 1&2 meshing sleeve shift gearbox.
M854-k/kq, m854-ks/kqs, m954-k/kq, m950-kr supporting f12+r12, main transmission full synchronizer shift transmission.
The synchronizer can shift gears without stopping completely when walking; Shift operation is more flexible and light.
Working organization
Power take-off shaft: independent, wet power take-off shaft clutch, speed 540/720 (r/min).
Three point suspension control mode: position adjustment, force adjustment, and comprehensive force position adjustment (70 hp products are equipped with standard position adjustment, and the force adjustment style can be selected)
Hydraulic output valve: 1 set as standard (85-95 HP, 3 sets at most).
Efficient operation

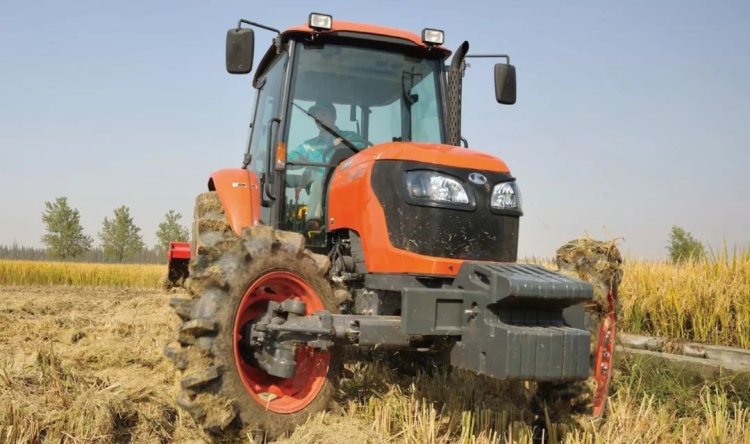

55 degree large steering angle
When turning, reduce the number of turns, shorten the operation time, save fuel consumption, improve work efficiency, especially suitable for ridging, sowing and other operations that need to turn around frequently in the field.
(※ only for four-wheel drive products, the maximum steering angle of 85 HP narrow track type is 50 degrees)
Independent, wet PTO clutch
Hydraulic control, without stepping on the clutch, the PTO can be connected and cut off with a small action of the right hand. The operation is comfortable and convenient, reducing the operation intensity and improving the operation efficiency.

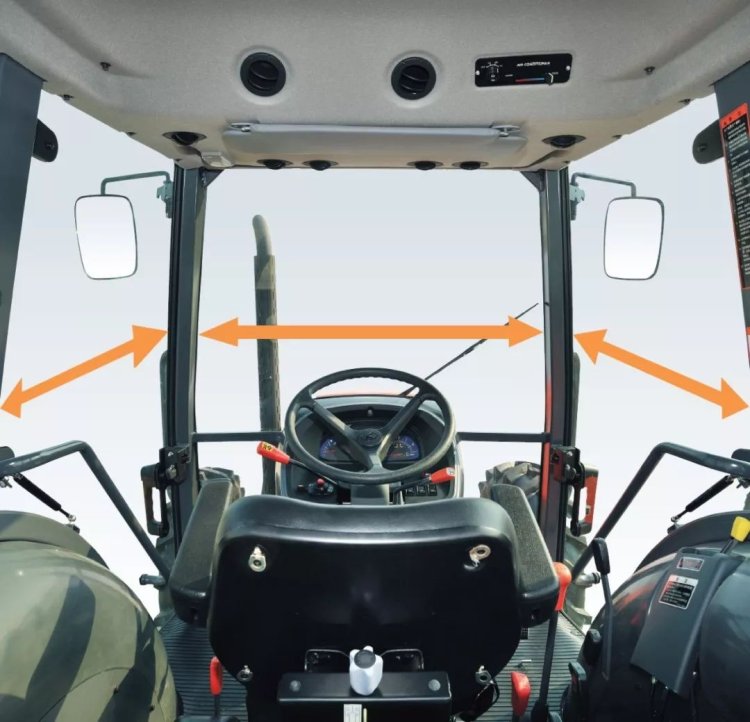

Centralized on the right side of the handle
The operation is more convenient, and at the same time, the driver can be more focused on driving during high-intensity operation.
