NF-902 tracked tractor

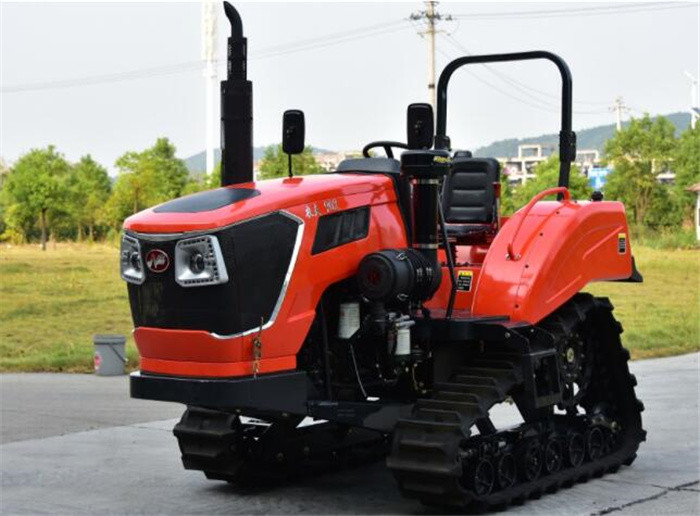

Product Introduction of Nongfu NF-902 Tracked Tractor

The NF series rubber track tractor is an upgraded product of the Q series light track tractor. Its main features include a hydraulic controlled planetary differential steering mechanism, steering wheel control, and the ability to achieve forward and reverse rotation of left and right tracks. The turning radius is small and there is less blockage, and the operation is light and flexible; The inline transmission is directly connected to the engine, with a meshing transmission mechanism that has a wide range of speed changes, high transmission efficiency, high traction power, and low fuel consumption; Integrated frame, rubber track triangular walking mechanism, high ground clearance, low ground pressure ratio, and good passing performance; By using force and position adjustment suspension devices and supporting various agricultural machinery, multi-purpose operations such as plowing, rotary tillage, ridging, trenching, loading, and drilling are completed. The product is a power machinery suitable for cultivating paddy fields and rapeseed tobacco fields in rice producing areas, especially suitable for comprehensive agricultural operations in southern and hilly areas.

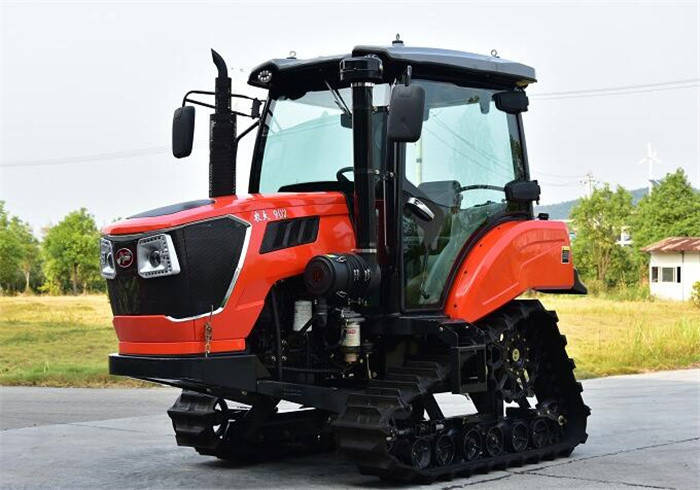

Product introduction of Nongfu NF-902 tracked tractor (cab)
◆ Equipped with Dongfanghong engine, powerful power;
◆ Traction force, high traction power, can be matched with various agricultural machinery for operation;
Equipped with an 8+8-speed gearbox, with a wide speed range and high efficiency in agricultural operations;
◆ Adopting hydraulic control differential non braking steering, turning 360 degrees in place without mud blockage;
◆ Adopting mechanical transmission, with high transmission efficiency and low fuel consumption, it is particularly suitable for field plowing, rotary tillage, and leveling operations;
◆ Optional fully enclosed cab with beautiful appearance and wide field of view;
◆ Steering wheel steering control, more precise and comfortable operation;
◆ Low ground pressure ratio, high ground clearance, good performance, achieving protective tillage;
Compact structure, low center of gravity, and good safety performance.

Technical parameters of Nongfu Xiaojiling NF-902 tracked tractor

Model NF-902
Dimensions: length x width x height (mm) 3690 x 1770 x 2400
**Small usage weight (kg) 2660
**Small ground clearance (mm) 420
Engine model YD4EZ90C1
Intake method turbocharging
Rated power (kW) 66.2
Fuel diesel
Rated speed (r/min) 2400
Starting method: Electric start
Steering braking system steering system type planetary differential steering
Brake system type: wet friction type
Transmission clutch type: single disc single acting
Transmission type (4+4) * 2 mechanical composition
Gearshift mode of the transmission: engagement sleeve shifting
Walking system frame type: rigid frame type
Track pitch x number of sections x width 54 * 90 * 400
Theoretical speed of each gear (km/h) low: 1.47; 2.16; 3.52; 4.62; High: 5.48; 8.05; 13.09; seventeen point one eight
Low: 1.171.71; 2.79; 3.66; High: 4.35; 6.38; 10.8; thirteen point six three
Working device hydraulic suspension system type: semi split type
Adjustment method: Force position adjustment
Power output shaft type rear mounted, non independent Type 1
Power output shaft speed (r/min) 720/1000
Power output shaft spline and outer diameter mm 8/38
