Kubota hand-held rice transplanter kW series product introduction

In order to further improve the operability, Kubota company upgraded the original SPW series hand-held rice transplanter and launched a new kW series hand-held rice transplanter.
KW series products include two models:
4-lane machine 2zs-4c (Kw4)
6-lane machine 2zs-6e (kw6)
1. Excellent power

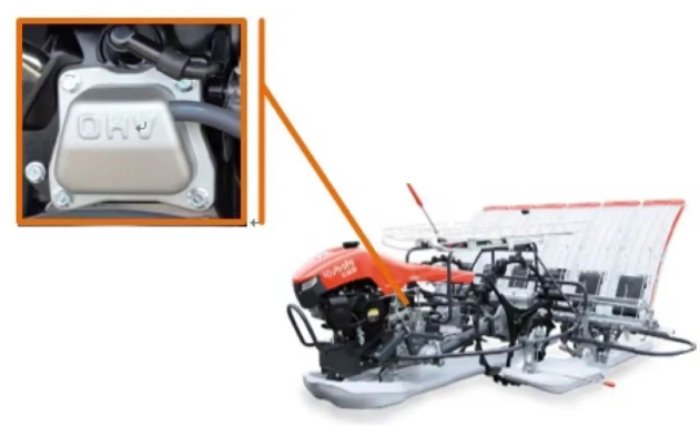

● equipped with Kubota high-power OHV gasoline engine.

● increased horsepower. Kw4 is 5.0 HP, kw6 is 5.7 HP.

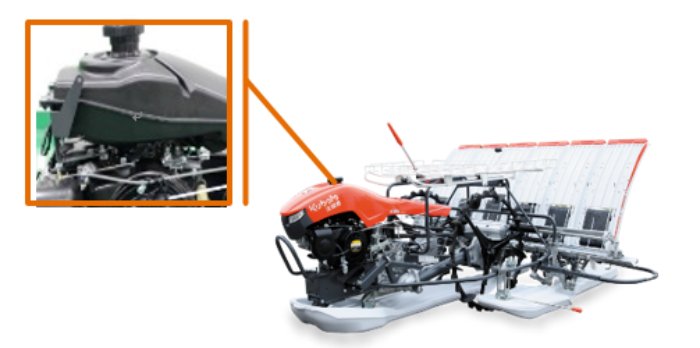

2. The oil tank is enlarged
● the whole series adopts 10L large capacity oil tank.

● fill up the whole tank of oil, which can basically meet the needs of one day's operation.

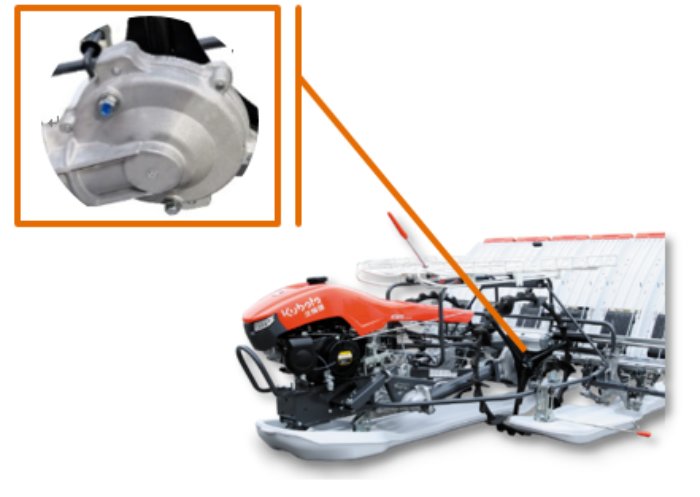

3. Performance improvement of wheel drive box
● hydraulic oil bath lubrication is adopted for better lubrication effect.

● more stable quality.

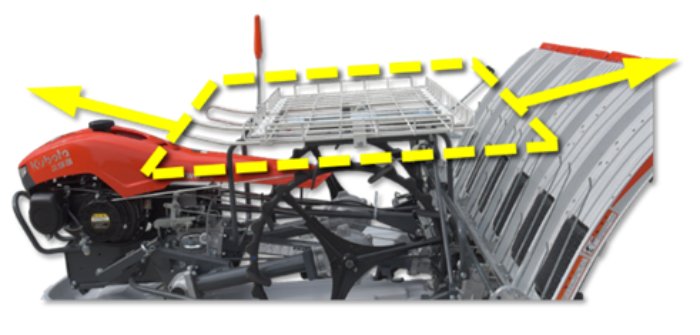

4. Improve the performance of the preparatory seedling rack
● the whole department adopts a push-pull preparatory seedling rack.

● the operation is easy and labor-saving, and it is convenient to add seedlings in the field.

5. Efficiency improvement
● the maximum operation speed reaches 0.85 M / s.

● the maximum operation efficiency reaches 3.47 mu / h.

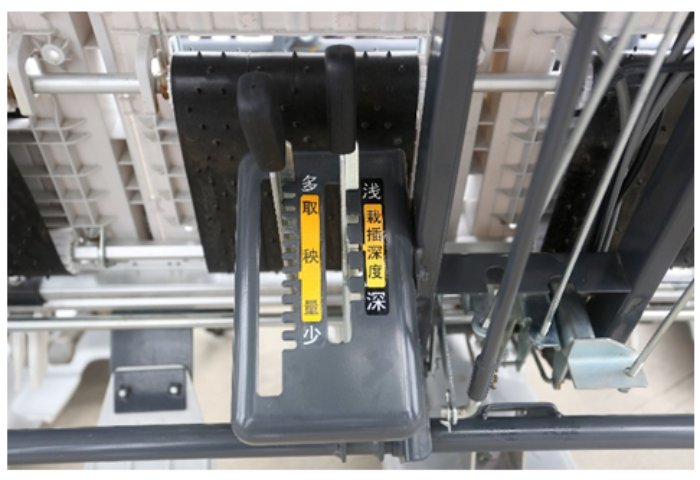

6. Improvement of planting adaptability
● number of horizontal seedling picking:
14. 18, 20, 26 (back).
● range of longitudinal seedling picking:
7-21mm, 12 gears adjustable.

● it can meet a variety of planting needs.
