Kubota CX100Q-S series Harvester

The cx100q-s, which is high-speed, smart and cross region intelligent, is specially tailored for a wide range of cross region operation users. It has strong power, fast walking speed, feeding capacity of 5 kg per second, smart body, sensitive control, convenient loading and unloading vehicles, flexible small field operation, newly upgraded chassis structure, and better performance of rotten fields. It is a cross region intelligent model.

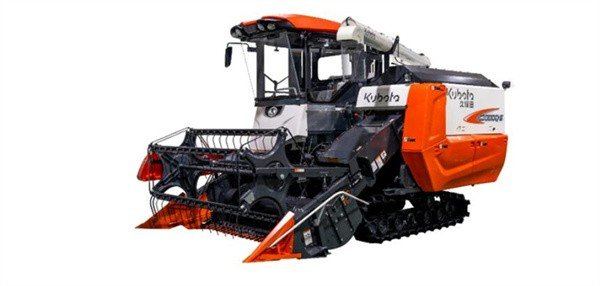

Cx100q-s (air conditioning cab type)

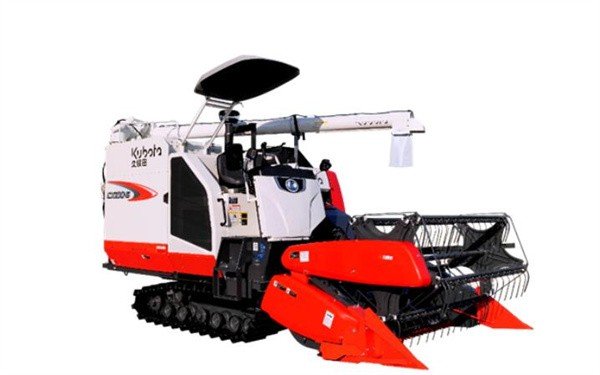

Cx100-s (CAB less)

Dexterity: the fuselage is short and smart, and the control is sensitive
5.03M short fuselage:
The fuselage is short and smart, the small field operation is flexible, and the truck loading is convenient.

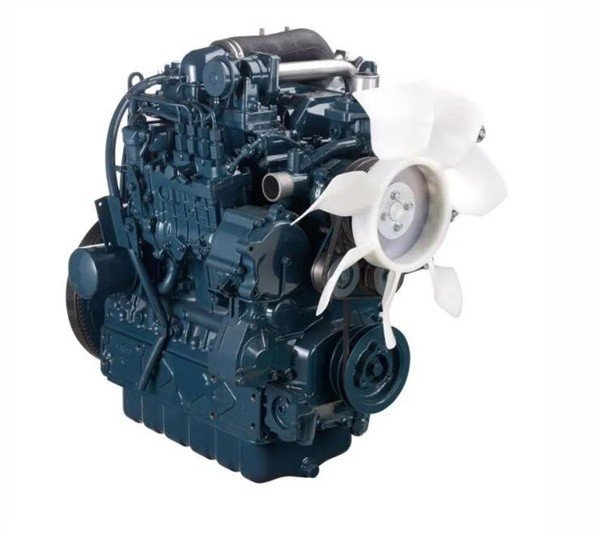

99 HP powerful engine:
Kubota v3800 series engine with mature assembly technology has strong power, stable quality, low noise, low vibration and low fuel consumption.

Radiator automatic cleaning system:
The new dual-mode radiator automatic cleaning system has two modes: 3-minute reverse 10 seconds or 2-minute reverse 7 seconds.
Pre cleaning function: the harvest clutch will automatically reverse once after 15 seconds, so as to achieve better heat dissipation effect and escort the efficient operation of the engine.
2.7 m / s high-speed walking: powerful engine, accurate matching of high-capacity HST and high-efficiency gearbox, walking speed as high as 2.7 m / S!
New chassis structure:
The chassis structure is optimized from a splayed beam to an angled beam, which effectively reduces the phenomenon of mud scraping on the girder and further improves the passing performance of rotten fields;
With 56 lengthened tracks and a special concave design, the mud throwing effect is better. The chassis has a clearance of 30 cm from the ground. The rotten field has strong passing performance, forming an efficient, safe and durable walking system.
The bearing wheel is upgraded to grease fitting type high-strength bearing wheel, which is simple and convenient for daily maintenance, extends the service life of the bearing wheel, saves the maintenance cost of users, and is durable and reliable.

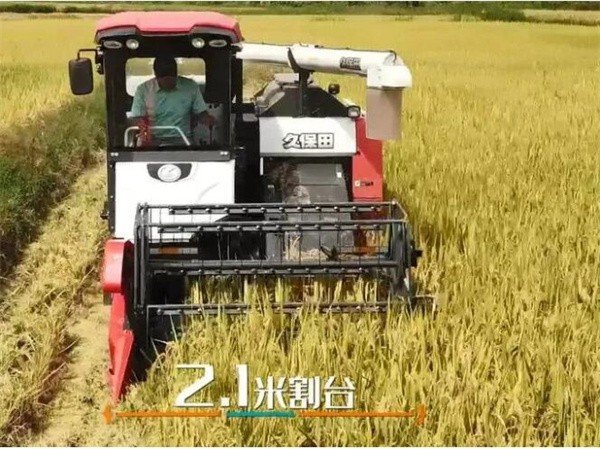

2.1m high efficiency header:

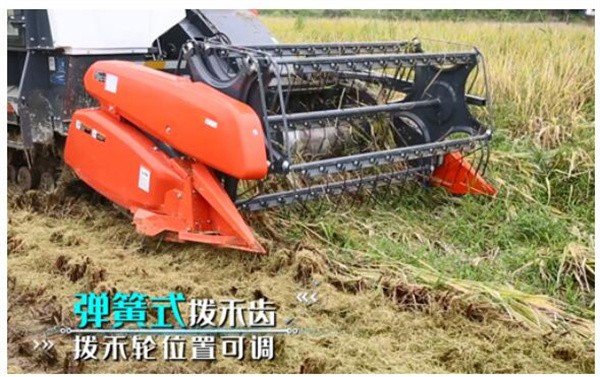

The left and right sides are equipped with outward expanding grain dividers, which expands the distance between the cutting tip and the edge of the crawler and reduces the phenomenon of the crawler pressing the ridges and crops.
Reliable and efficient
Lodging crops are fed smoothly:
High yield crops, green stem rice, lodging / semi lodging crops can be fed smoothly.

Clean threshing and less loss
1.96 meter long large diameter threshing drum, threshing clean, less loss.
The diversion spiral plate of threshing section is increased from 2 to 3, so that the crops from the conveying section can enter the threshing section more smoothly and improve the operation efficiency.
2. Optimization of threshing structure of re thresher of auger:
Upgrade from plate type to toothed rod type, further improve the threshing performance of the re thresher, improve the threshing and cleaning capacity, and reduce losses.
Large diameter high-level grain unloading drum:
Convenient grain unloading: the grain unloading cylinder rotates left and right in two directions;
Fast: unload a grain bin in 90 seconds;
Wide adaptability: the height of grain unloading cylinder can reach 5 meters, and the lowest position: 0.9 meters
It is suitable for a variety of grain unloading trucks.

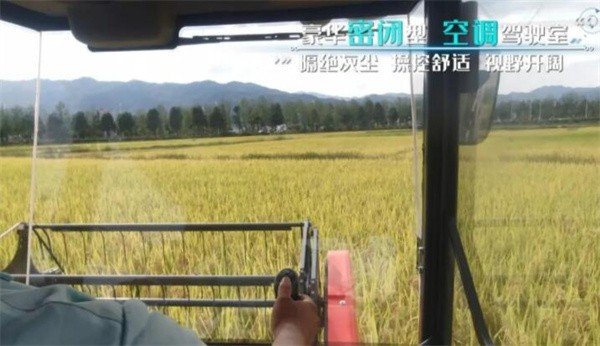

Luxury airtight air-conditioned cab:

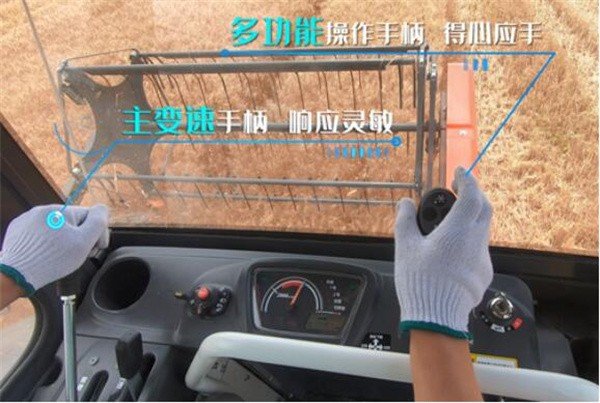

The control is sensitive and handy!
Integrated hydraulic and electric control technology, sensitive and comfortable operation. When harvesting, just operate the HST main speed change handle and multi-function operation handle to experience easy operation.
