Description

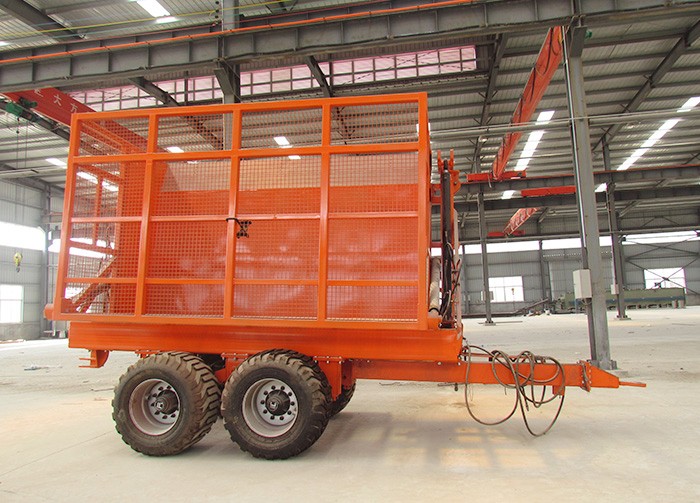

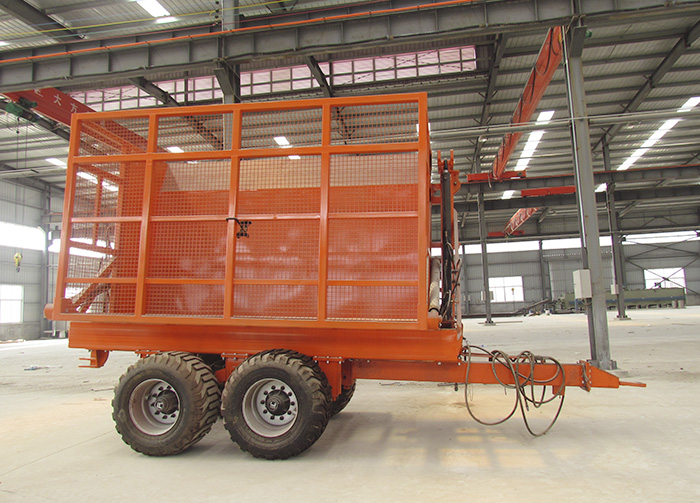

Sugarcane Trailer
0T Sugarcane trailers are designed for the haulage of whole stick cane only. The trailers are manufactured with a lattice type side; this reduces the weight of the trailer. The up rights (or bolsters), head and tail boards are all collapsible, enabling the trailers to be delivered in a semi knock down form – reducing exportation transport costs. Once the tail board, spillar bar and chain rails are unbolted, the trailer is then able to transport timber.
Main features: Use Low pressure rip-proof transport tyre, fit for rough field transportation, box could up to 4.5m and 45 degrees heeled take crop into the trailer, Convenient transportation and quick loading and unloading, it could have some box, is an ideal transit trailer.
|
MODEL |
7CG-10 |
|
Rated Load Weight(T) |
10 |
|
Carriage Length(mm) |
4250 |
|
Lifting Height(mm) |
4700 |
|
Carriage capacity(m³) |
22.3 |
|
Specific gravity (Kg/ m³) |
450 |
|
Axle |
Tandem type |
|
Outer track (mm) |
2400 |
|
Track(mm) |
1800 |
|
Inner track(mm) |
1200 |
|
Tire qty. |
4 |
|
Lifting hydraulic |
2 |
|
Tire type |
600/50-22.5 |
|
Rated weight of traction hook (KN) |
200 |
|
Hydraulic system |
Min. 85 Lts/min |
|
Braking system |
Air compression |
