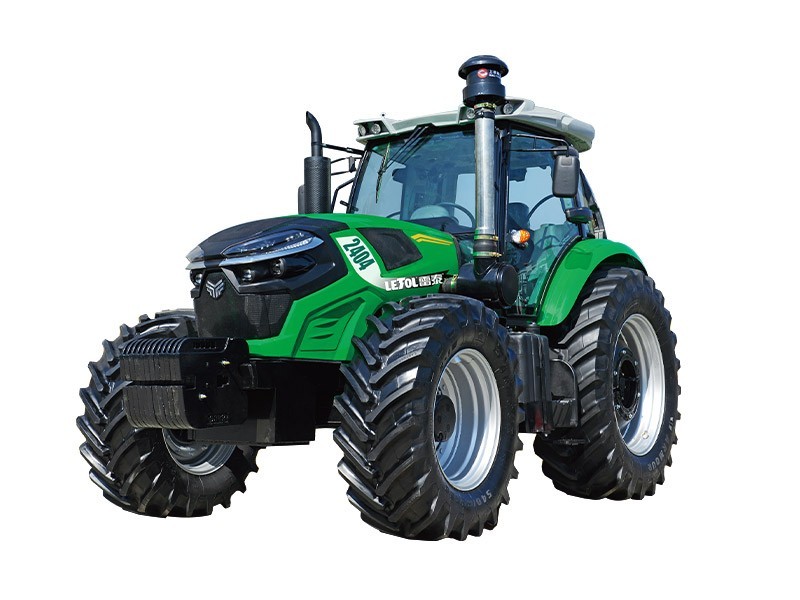

Shandong Laitai 2404 4WD Tractor

Features of Shandong Laitai 2404 (G4) Tractor Products

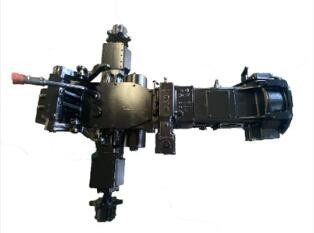

Chassis
The entire machine adopts a manufacturing method of integrated processing with a thickened and weighted chassis and gear box. The self machined rear axle is more sturdy and sturdy, with stronger bearing capacity.

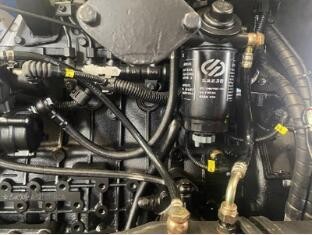

Oil pipe
The oil pipe adopts a double suction method, and the gear lifter and box body use mixed oil.

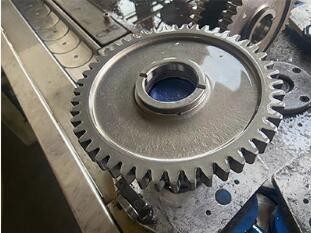

Gear
Equipped with a dedicated CNC machining center, it improves surface smoothness, reduces the sound emitted by gears during startup and travel, and reduces vehicle noise.

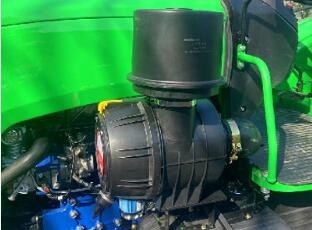

Air filter element
The air filter adopts an external and large dry air filter, which prevents dust from entering the engine while not affecting the heat dissipation of the water tank.
Laitai 2404 Technical Specifications
Project Unit :2404 Design Value
Power (horsepower):240HP
Model:2404, wheeled tractor
Type:wheel type
Rack type:safety rack
Drive type:four-wheel drive
Purpose:General Purpose
Overall dimensions (length x width x height and position) : 5320X2750X3120mm (air filter top)
Wheelbase or track grounding length : 2840mm
Common wheel gauge (front/rear) or track gauge : 1940/1760mm
Wheel gauge (front/rear) or track gauge :1940, 2040, 2100, 2200/1760-2380mm
Minimum ground clearance and position:410 (lower end of traction seat)mm
Horizontal distance from the front end face of the clutch housing to the centerline of the rear drive shaft :1420mm
Center distance of gearbox gear secondary shaft hole : 125mm
Minimum usage mass kg 7750
Standard counterweight (front/rear) kg 240/480
Minimum usage ratio mass kg/kw 43.79
Number of gears (forward/reverse)/16+16
Number of main transmission gears/4
Number of auxiliary transmission gears/4X (1+1)
Minimum design theoretical speed km/h 36.03
Connection method between engine and main clutch/direct connection
Rollover protection device (cab or safety frame) type/simple cab
Engine model/SC7H240G3
Engine structure type/inline, direct injection, water-cooled, four stroke
Engine intake method/turbocharging and intercooling
Number of engine cylinders/6
Engine rated power kw 177
Engine rated speed r/min 2200
Engine cooling method/water cooling
Air filter type/dry type
External dimensions of exhaust pipe sound-absorbing chamber (length X width X thickness or diameter X length) mm φ 230X900
Mass of exhaust pipe silencing chamber kg 7.2
Steering system type/fully hydraulic steering
Steering system steering control mechanism/steering wheel
Steering system steering mechanism type/front wheel steering
Transmission type/mechanical plane composition
Number of transmission system boxes 2
Main transmission position/1st box
Main transmission shift mode/mechanical step shift
Secondary transmission shift mode/mechanical step shift
Tire model (front/rear)/540/65R28 650/65R38
Hydraulic suspension system type/split type
Suspension device type/rear three-point suspension
Suspension device category/Class 3
Number of hydraulic output groups/3
Working device safety valve fully open pressure Mpa 18 soil 0.5
Number of power output shaft splines/8
Standard speed of power output shaft r/min 540/1000
