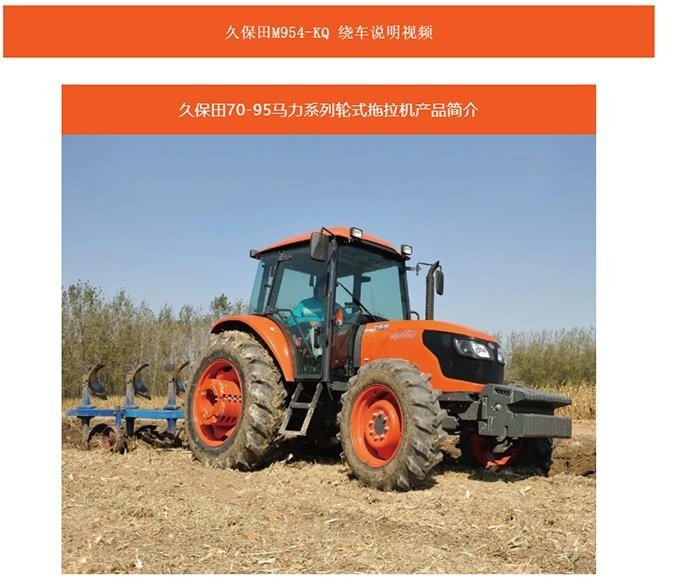

Product introduction of Kubota series 70-95 HP tractors
In order to meet the operational needs of tractor users in different regions, Kubota company launched 70 HP, 85 HP and 95 HP tractors for the market. Since sales, it has won the love and trust of users and friends.
Reliable Performancedynamic system

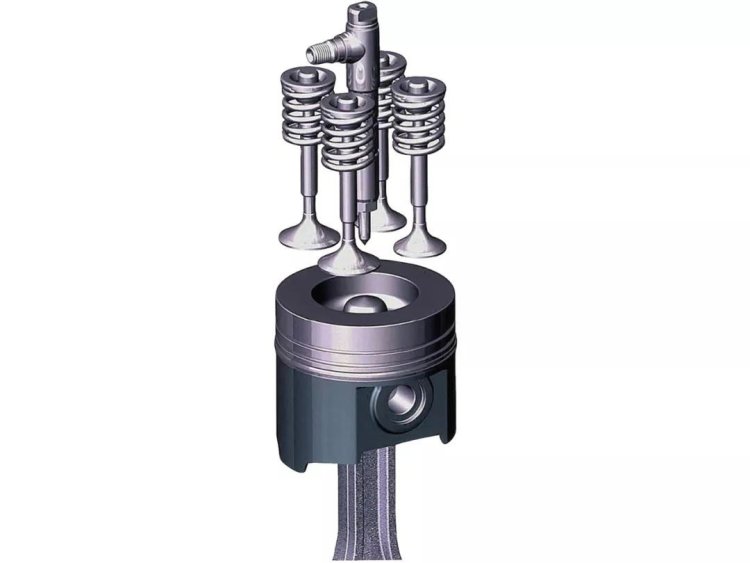

Kubota brand diesel engine has the characteristics of low fuel consumption, low noise, low vibration and low failure rate. It has high output power and long service life. It can not only improve the operation efficiency of users, but also reduce the fuel cost of users.

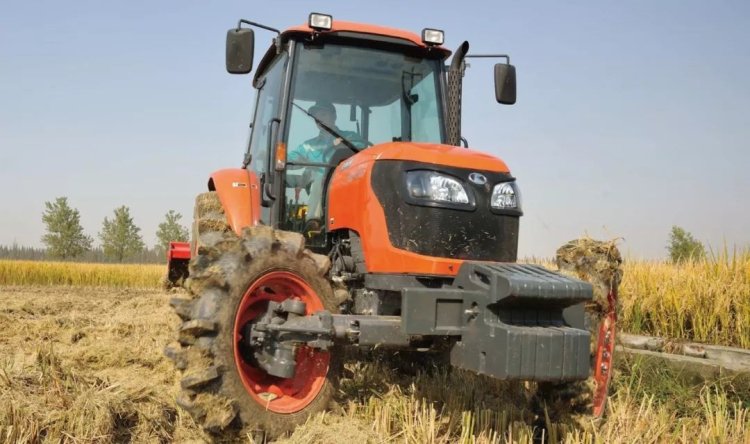

The sealed bevel gear front axle can prevent the invasion of mud, water and debris, which makes paddy field operation more secure and has a longer service life.
Shuttle shuttle
Shuttle reversing has more advantages in small fields, narrow roads or loading machines and tools before use. The switch between forward and backward can be realized with a small action of the left hand, which is labor-saving and convenient.

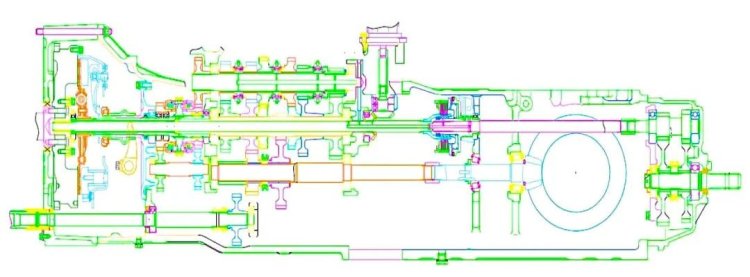

·M704-k/kq is equipped with f8+r8, main transmission 3&4 synchronizer, 1&2 meshing sleeve shift gearbox.
·M854-k/kq, m854-ks/kqs, m954-k/kq, m950-kr supporting f12+r12, main transmission full synchronizer shift transmission.
·The synchronizer can shift gears without stopping completely when walking; Shift operation is more flexible and light.
Working organization
·Power take-off shaft: independent, wet power take-off shaft clutch, speed 540/720 (r/min).

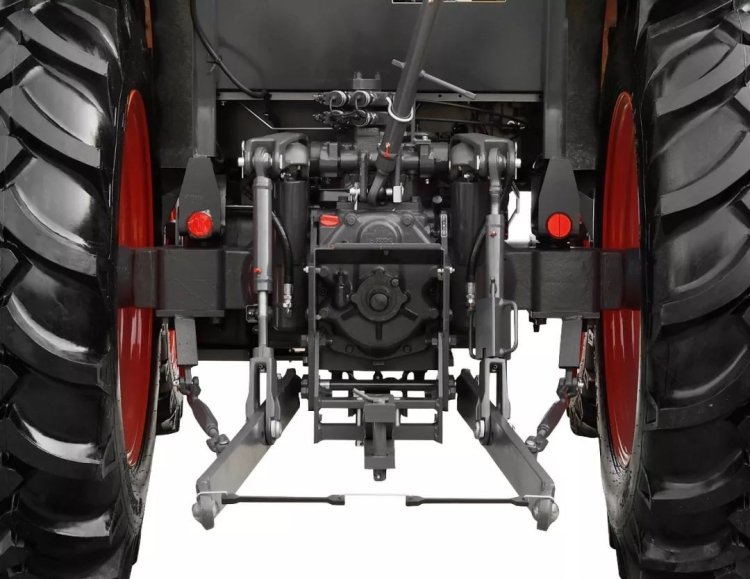

·Three point suspension control mode: position adjustment, force adjustment, and comprehensive force position adjustment (among them, 70 hp products are equipped with standard position adjustment, and the force adjustment style can be selected).
·Hydraulic output valve: 1 set as standard (85-95 HP, 3 sets at most).
55 degree large steering angle
When turning, reduce the number of turns, shorten the operation time, save fuel consumption, improve work efficiency, especially suitable for ridging, sowing and other operations that need to turn around frequently in the field. (※ only for four-wheel drive products, the maximum steering angle of 85 HP narrow track type is 50 degrees)
·The reasonable wheelbase of the whole vehicle makes the tractor run more smoothly when working under heavy load.
·The adjustable range of wheel base is widened to meet the operation requirements under a variety of agronomic conditions.
Excellent body weight design
·The lightweight body design, combined with high ground clearance, makes it difficult for the tractor to sink when working in paddy fields, ensuring the operation effect and improving the operation efficiency.
·By adding counterweight iron and combining with reasonable wheelbase, it can easily complete the heavy-duty operation in dry fields and improve the overall operation income of users.
Comfortable operation
Independent, wet PTO clutch
Hydraulic control, without stepping on the clutch, the PTO can be connected and cut off with a small action of the right hand. The operation is comfortable and convenient, reducing the operation intensity and improving the operation efficiency.
Centralized on the right side of the handle
The operation is more convenient, and at the same time, the driver can be more focused on driving during high-intensity operation.

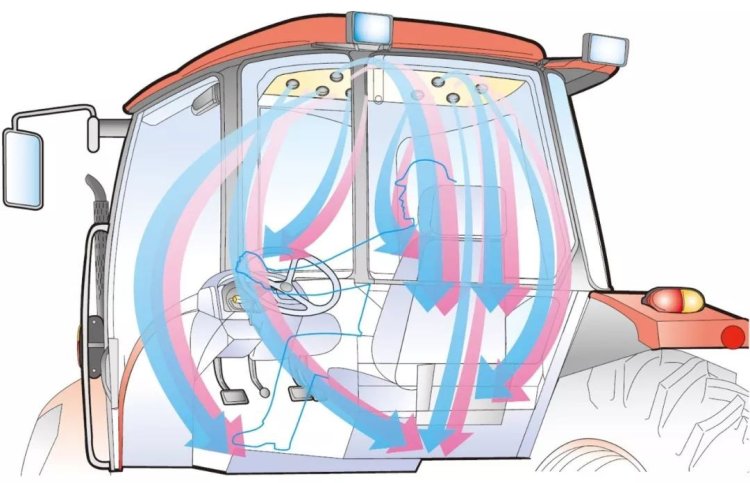

Comfortable air-conditioned cab (85 HP /95 HP)
The cold and warm air-conditioned cab adopts a large-area windshield, which has wide vision, high sealing, low noise and vibration, and is not easy to fatigue during operation.
