NF-902 Tracked Tractor

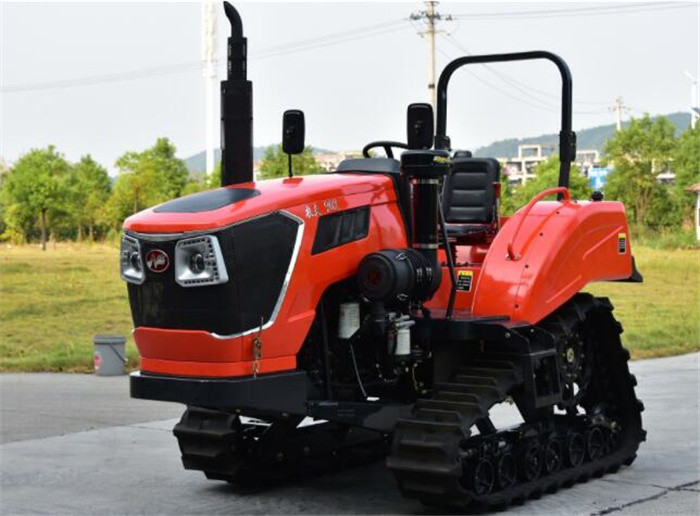

Nongfu NF-902 Tracked Tractor Product Introduction
The NF series rubber track tractor is an upgraded product of the Q series light track tractor. Its main features include the use of a hydraulic controlled planetary differential steering mechanism, steering wheel control, achieving positive and negative rotation of the left and right tracks, small turning radius, less mud accumulation, and lightweight and flexible operation; The inline transmission is directly connected to the engine, with a meshing transmission mechanism, which has a wide transmission range, high transmission efficiency, high traction power, and low fuel consumption; Integrated frame, rubber track triangular walking mechanism, high ground clearance, low ground pressure ratio, and good passing performance; Adopting force and position adjustment suspension devices, equipped with various agricultural machinery, to complete multi-purpose operations such as plowing, rotary tillage, ridging, trenching, loading, and drilling. The product is a power machinery suitable for cultivating paddy fields and rapeseed tobacco fields in rice producing areas, especially suitable for comprehensive agricultural operations in southern and hilly areas.

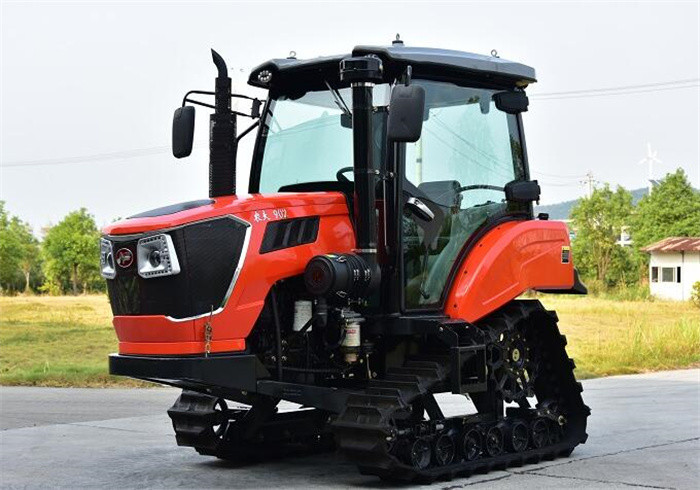

Product Introduction of Nongfu NF-902 Tracked Tractor (Cab)
◆ Equipped with Dongfang Red engine, with strong power;
◆ Traction force, high traction power, capable of supporting various agricultural machinery for operation;
Equipped with an 8+8-speed gearbox, with a wide speed range and high efficiency in agricultural operations;
◆ Adopting hydraulic controlled differential non braking steering, 360 degree in place steering, without mud blockage;
◆ Adopting mechanical transmission, with high transmission efficiency and low fuel consumption, it is particularly suitable for field plowing, rotary tillage, and leveling operations;
◆ Equipped with a fully enclosed cab, with a beautiful appearance and wide field of view;
◆ Steering wheel steering control, more precise and comfortable operation;
◆ Low ground to ground pressure, high ground clearance, good performance, achieving protective tillage;
Compact structure, low center of gravity, and good safety performance.

Technical parameters of Nongfu Xiaojiling NF-902 tracked tractor
Model NF-902
Size length × wide × Height (mm) 3690 × one thousand seven hundred and seventy × two thousand and four hundred
**Small usage weight (kg) 2660
**Small ground clearance (mm) 420
Engine model YD4EZ90C1
Intake method turbocharging
Rated power (kW) 66.2
Fuel diesel
Rated speed (r/min) 2400
Starting method Electric starting
Steering braking system steering system type planetary differential steering
Brake system type: wet friction type
Transmission clutch type single disc single acting
Transmission type (4+4) * 2 mechanical composition
Gearshift mode of the transmission: engaging the gear shift sleeve
Traveling system frame type: rigid frame type
Track pitch × Number of sections × Width 54 * 90 * 400
Theoretical speed of each gear (km/h) low: 1.47; 2.16; 3.52; 4.62; High: 5.48; 8.05; 13.09; seventeen point one eight
Low: 1.171.71; 2.79; 3.66; High: 4.35; 6.38; 10.8; thirteen point six three
Working device hydraulic suspension system type: semi split type
Adjustment method Force level adjustment
Power output shaft type rear mounted, non independent type 1
Power output shaft speed (r/min) 720/1000
Power output shaft spline and outer diameter mm 8/38
