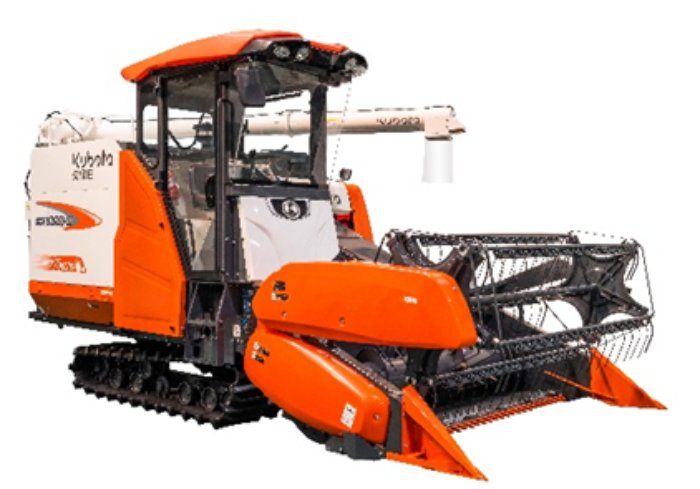

Kubota EX108QS series harvester with high efficiency and low loss

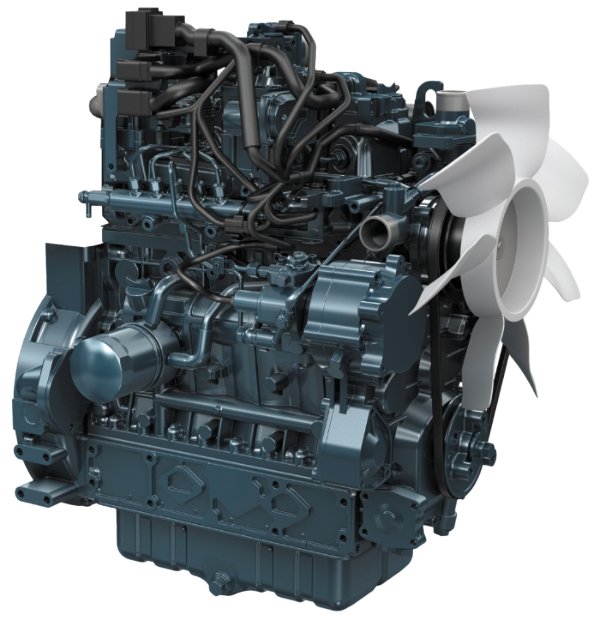

Powerful engine:Kubota 109 HP common rail engine with strong power;
Durable and reliable, long continuous operation time;
Low vibration, low noise, energy saving and environmental protection.
Dual mode: the radiator fan reverses 10 seconds every 3 minutes or 7 seconds every 2 minutes.
Pre cleaning function: the radiator fan will automatically reverse once after the harvest clutch is combined for 15 seconds.
The open and close radiator design is convenient for maintenance and can deeply clean the dust on the surface of the radiator.
The maximum walking speed is 2.4 m / s
Kubota 45cc high capacity HST
56 section, 50cm wide, 4.5cm high concave track
Grease fitting type high-strength bearing wheel, durable and reliable

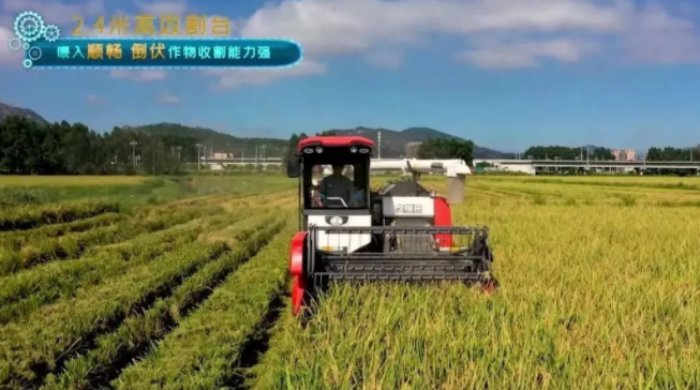

2.4m high efficiency header:
Outward spreading grain divider;
The rotation speed of the cutter, reel, feeding auger and conveying chain is increased by 18%, the feeding is smooth, the cutting stubble is neat, and the green rod and high-yield crops can be fed smoothly;
The spring tooth reel is used, which is not easy to deform and can effectively pick up lodging crops;
Reinforced header frame, reinforced feeding drive gear and reinforced reel are durable and reliable!

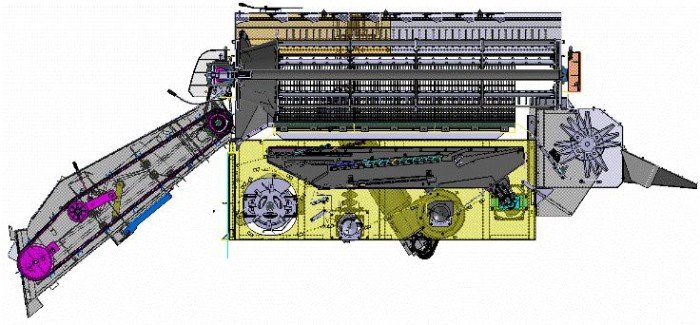

2.21M large diameter threshing drum, high-efficiency cleaning, low loss, low impurity content, and particle storage;
The reinforced vibrating screen is durable.
1400l large capacity granary, reduce the times of grain unloading and improve the operation efficiency;
Matched with large diameter high-level grain unloading cylinder, the grain unloading speed is fast, and can adapt to a variety of grain trucks.
Rotate the unloading cylinder in both directions, and the height of the unloading cylinder can reach 5 meters, with a minimum of 0.9 meters.
Easy operation:

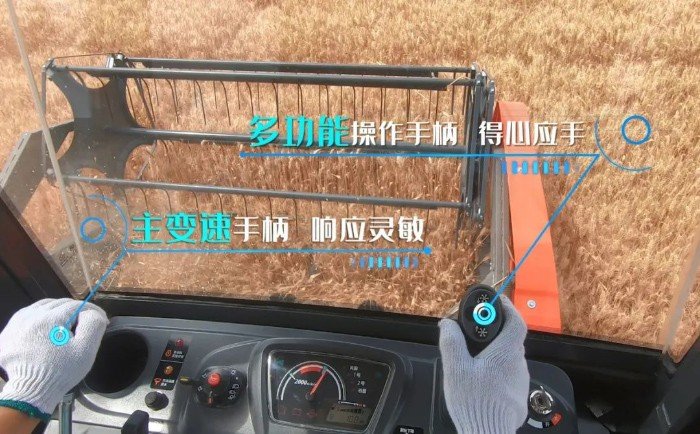

The multi-function operating handle integrates electric control and hydraulic technology, making the machine operation more comfortable and convenient.
One handle can control the turning of the machine, the lifting of the header and the lifting of the reel, so as to easily deal with the complex working environment.
Cold and warm air conditioning, whether hot or cold, can work calmly.
It has strong sealing performance, which can isolate dust and heat and ensure comfortable operation.
