Huanghai Jinma YR2204 220HP 4WD tractor

Huanghai Jinma YR2204 Wheel Tractor Product Introduction
1. Supporting brand power: YR2004 is equipped with Dongfang Red LR6M220-40 National Fourth Engine;
2. The overall design is beautiful, with a carbon fiber hood and a brand new cab, and LED light source used for lighting;
3. Equipped with a 15 inch independent double acting clutch, it transmits large torque and has strong power;
4. Shuttle shaped gear structure, multiple gear positions, reasonable speed matching, and high work efficiency;

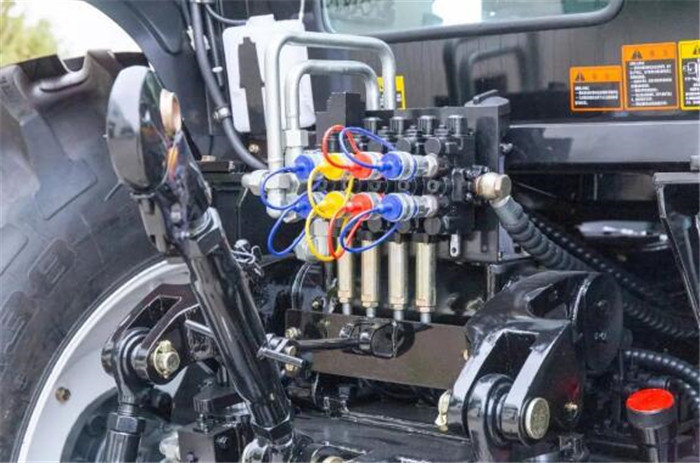

5. Equipped with well-known brand hydraulic components in the industry; Optional electric hydraulic lifting system;
6. The large fuel tank has a long duration of continuous operation and high efficiency;
7. Radial tires have strong load-bearing capacity and long service life;

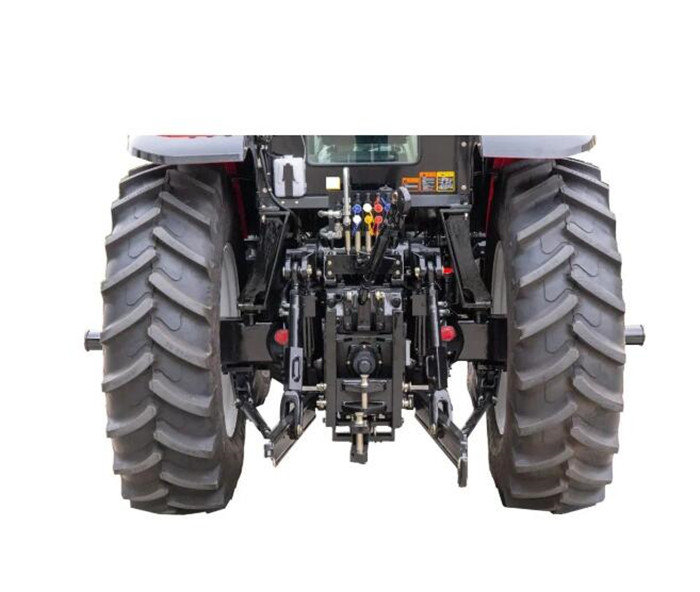

8. Strong pressure type elevator, with good reliability and convenient maintenance;
9. Multiple sets of outputs to meet the needs of users for supporting multiple machines and tools.

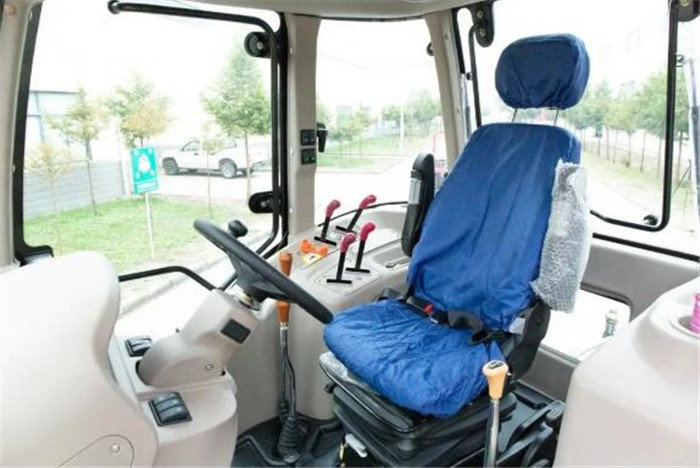

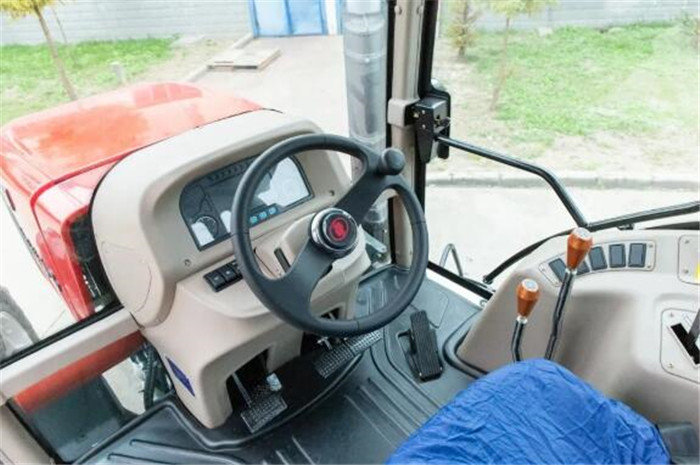

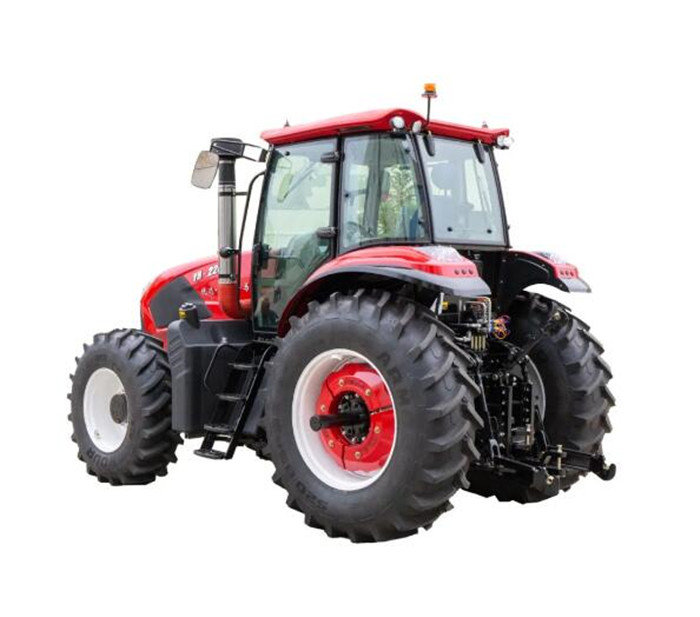

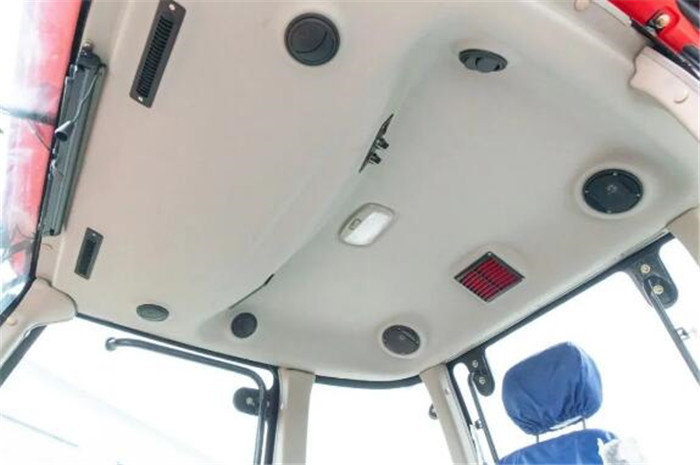

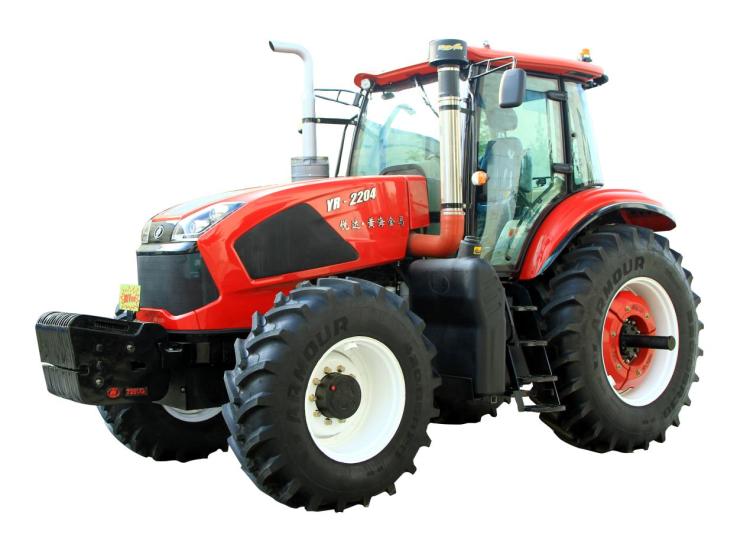

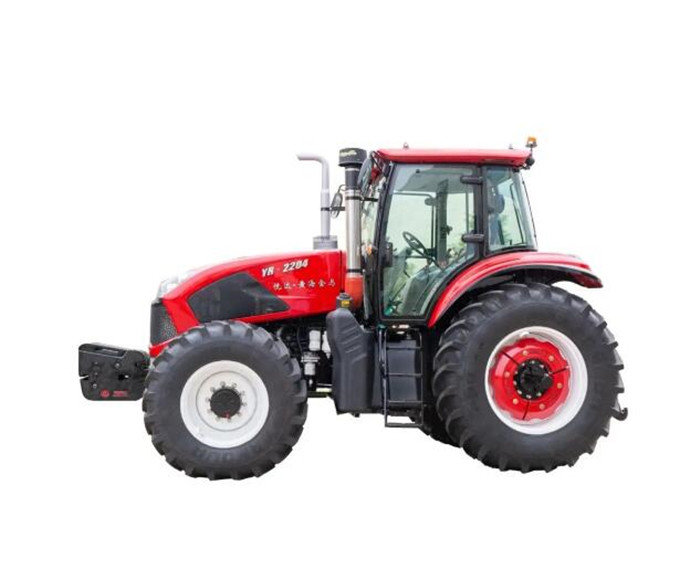

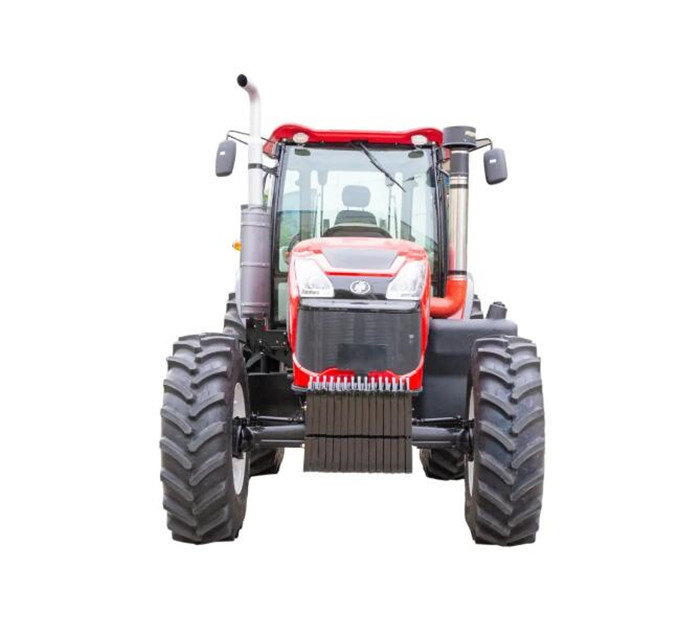

Huanghai Jinma YR2204 Wheel Tractor Product Details Display

Technical parameters of Huanghai Jinma YR2204 (G4) wheeled tractor
Serial number Technical parameter YR2204
1. Overall dimension (mm) 5585 × 2560 ×3450
2 wheelbase (mm) 2860
3 Common Wheel Track (mm) 1980/2030
4 wheelbase (front/rear) 1840, 1980, 2260, 2360/1700~2870
5 Ground clearance (mm) 485
6 gears (1+1) x4x4x2
7 tire models (front/rear) 480/70R28/580/70R38;540/65R30/650/65R42
8 Power output speed (r/min) 540/760 or 540/1000
9 Suspension Category 3
10 power 162kW
