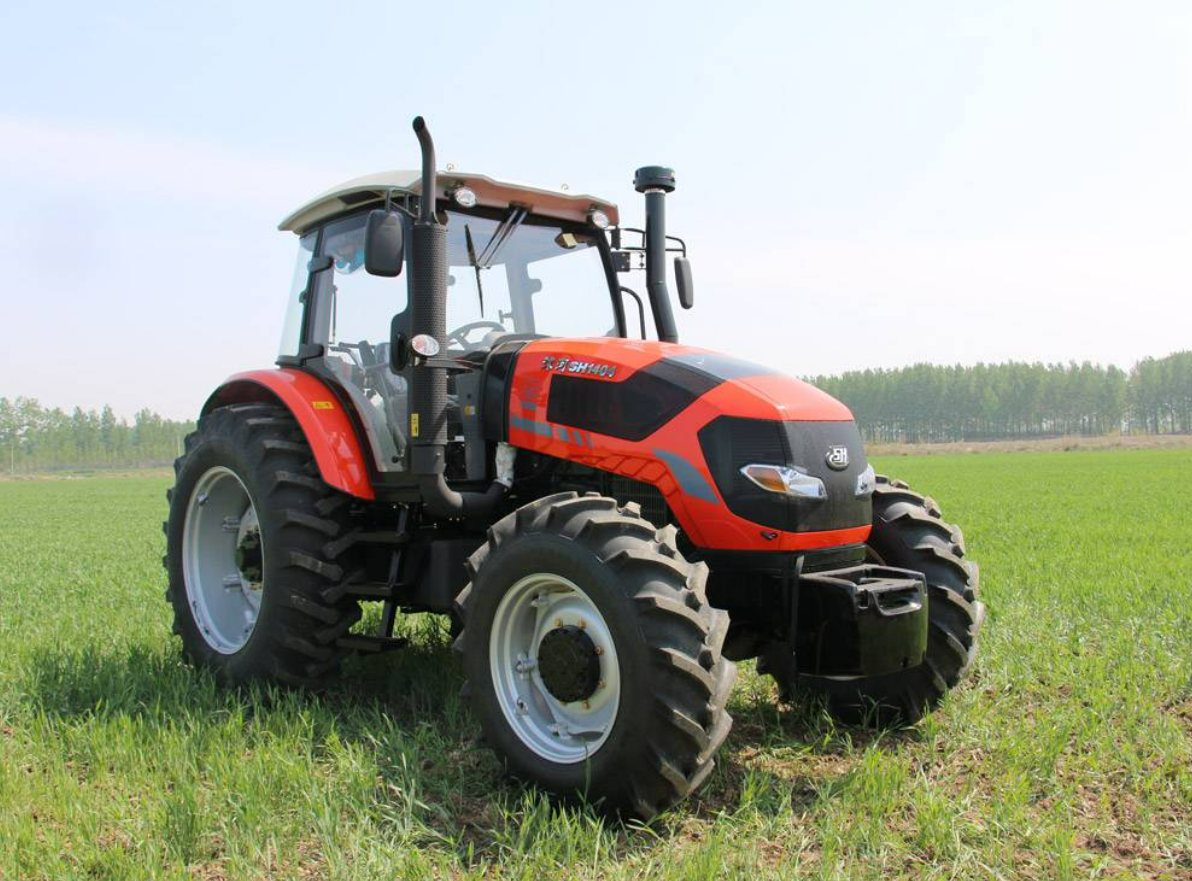

Deutz-Farr DF1404 wheeled tractor

1. Equipped with a six-cylinder turbocharged intercooled engine with high cost performance;
2. The gearbox adopts synchronizer to shift gears, and the gear is moderate, and crawling gear is optional;
3. Newly designed cab with heating, ventilation and air conditioning, beautiful and comfortable;
4. The front axle of famous foreign brands is adopted, with stable performance and high reliability;
5. The three-point suspension system is fast and convenient;
6. Two-way hydraulic output is standard and three-way hydraulic output is optional;
7. Domestic famous and high-quality tires are used, and various configurations are available.

model
DF1404
Overall dimension (mm)
5038 x2344x 3025
Supporting engine model
YC6J155L-T20
Rated power of matching engine (kW)
one hundred and fourteen
Rated speed of matching engine (r/min)
two thousand and three hundred
Number of gears (forward/reverse)
24F + 12R
Connection mode of engine and clutch
Direct connection
Steering system type
Hydrostatic steering
Transmission shift mode
Synchronizer shift
Hydraulic suspension system type
Split type
Adjustment mode of suspension device
Force/position/load control
Power take-off type
Freestanding
Power output shaft speed (r/min)
540/1000
Minimum ground clearance (mm)
four hundred and fifty
Minimum service mass (kg)
six thousand and two hundred
Counterweight - maximum (kg)
730/810
