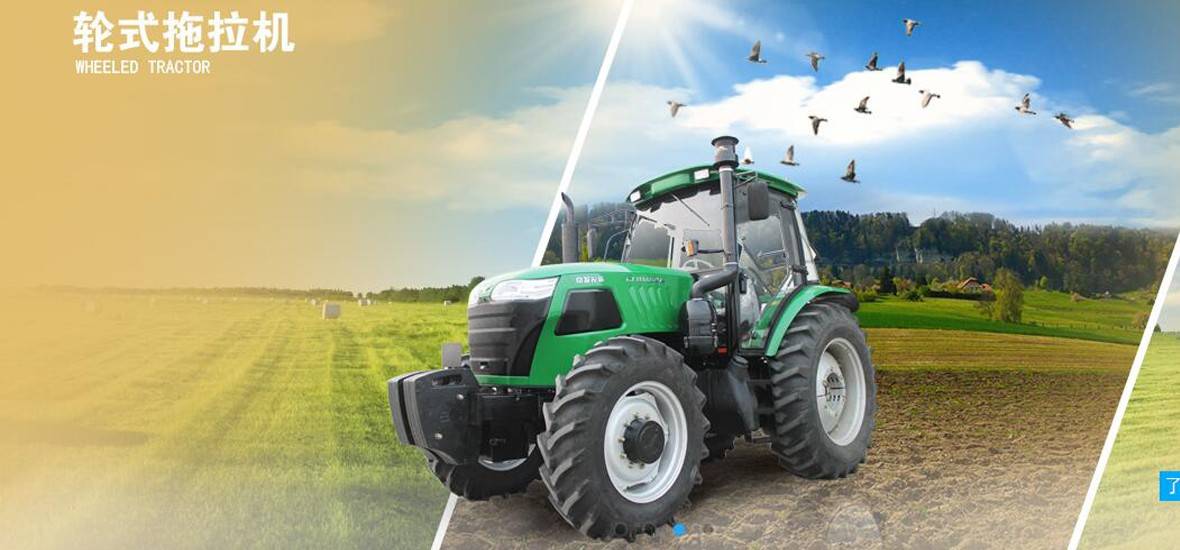

CF504 Tractor

Product features:
1. Equipped with imported fuel injection system, Changfa brand four cylinder diesel engine has the advantages of low fuel consumption, more fuel saving, faster speed increase and more powerful horsepower, which is ahead of similar domestic models.
2. In order to meet the special market demand of Dora express and one machine multi-purpose, a high-speed transport gear device is specially developed for users to choose. The maximum driving speed can reach 39 km / h, with high transport efficiency and fuel saving.
3. The lifting force of the hydraulic lifting system is large, up to 830kg. The hydraulic system adopts a new type of oil filter, with large oil filtering capacity, good filtering effect and convenient maintenance.

4. The shuttle shift structure with 8 forward gears and 8 reverse gears is adopted, so that the forward and reverse gears can realize instantaneous conversion in one shift, which significantly improves the working efficiency of the unit and increases the comfort of operation.
5. Compared with the domestic similar models, according to the ergonomic design concept, the humanized overall flat floor is developed. Combined with the side shift, the operation space is increased, the space utilization rate is improved, the operation is comfortable and light, and the work intensity of drivers and passengers is reduced.
6. The stepless structure of wheel track can adapt to different requirements of planting and operation ridge distance (stepless adjustment can be realized between (1200-1600) mm, and narrow wheel track model can be selected, with the range of wheel track being (980-1200) mm).
7. Fully considering the different needs of users, the structure of the power take-off and the adjustable towing device is optimized, so that the power take-off and the traction towing device can be used at the same time without interference with each other, and the coupling is simple, time-saving and labor-saving.
8. The fully enclosed front drive axle developed with unique patented technology can effectively prevent mud and water from entering during operation, which makes the machine durable and is the preferred model for paddy field operation.
9. It adopts wet self increasing disc brake, which is more efficient and wear-free, more reliable in braking and more stable in performance. At the same time, it adopts planetary gear final reduction mechanism, which makes the walking more stable and reliable.
