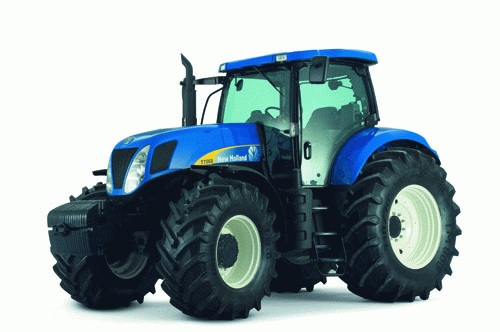

Case In/New Holland T2104 Tractor

技术参数：

Technical parameters:
发动机功率 213马力，6缸，高压共轨燃油喷射系统
Engine power 213hp, 6-cylinder, high pressure common rail fuel injection system
排放标准 符合欧III标准
Emission standard Comply with Euro III standard
最大功率 242马力
Maximum power 242 HP
最大扭矩 984牛顿·米
Maximum torque 984 Newton · M
扭矩储备 30%
Torque reserve 30%
发动机排量 6.7升
Engine displacement 6.7L
油箱容积 410升
Tank volume 410 L
变速箱形式 全动力换挡
Transmission form Full power shift
档位数（前进×后退） 18×6
Number of gears (forward) × (back) eighteen × six
轴距 2884mm
Wheelbase 2884mm
液压形式 闭心式
Hydraulic form Closed heart
液压系统流量 120升/分
Hydraulic system flow 120 L / min
液压输出阀 4组
Hydraulic output valve 4 groups
后悬挂提升能力 8647公斤
Lifting capacity of rear suspension 8647 kg
动力输出轴转速 540/1000
Power take-off speed 540/1000
PTO最大输出功率 205马力
Maximum output power of PTO 205 HP
后双轮连接方式 长半轴连接
Rear two wheel connection mode Long axle connection
前桥与后桥差速锁 均带有自动控制和强制锁定2种模式
Front axle and rear axle differential lock Both have two modes of automatic control and forced locking
转向角 55°
驾驶室配置 钢结构防翻车式密封空调驾驶室
Steering angle fifty-five °
Cab configuration Steel structure anti rollover sealed air conditioning cab
轮胎配置 前单后双
Tire configuration Front single back double
