Description

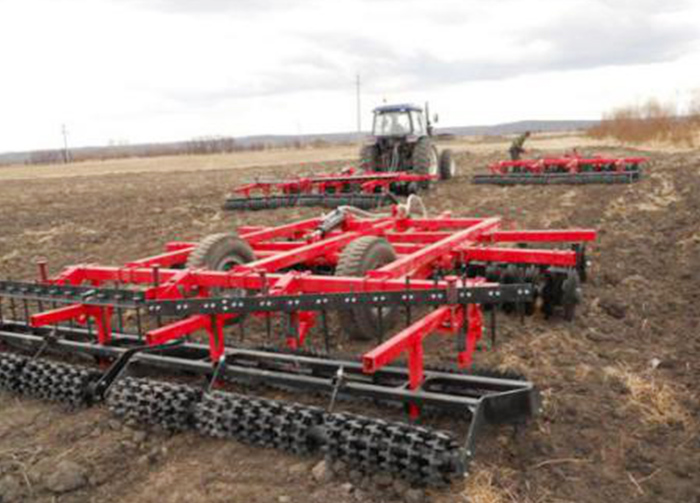

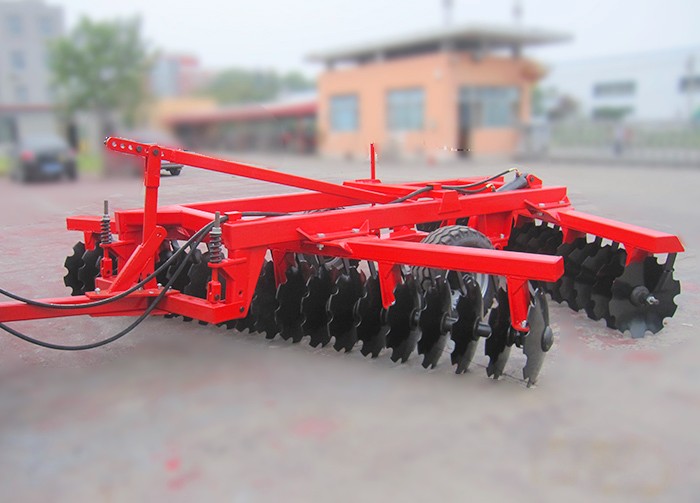

1LZ-Untites Entire Machine-Tandem Type
Especially matchable with tractor, Applicable to wasteland, swamp shrub land, heavy soil and stubble land before ploughing, breaking clods after ploughing, loose soil, can replace the plough on the mature land to carry out the soil ploughing operation.The roller is used for breaking up the clods and leveling the ground.
|
Model |
1LZ-3.6 |
1LZ-4.2 |
1LZ-5.4 |
1LZ-7.2 |
|
Working width(m) |
3.6 |
4.2 |
5.4 |
7.2 |
|
Working depth(mm) |
120-140 |
120-140 |
120-140 |
120-140 |
|
Diameter of Disc(mm) |
460 |
460(510) |
460(510) |
460(510) |
|
Spacer(mm) |
170 |
170 |
170 |
170 |
|
Disc assembly angle |
3°/6°/9°/11°/13° |
3°/6°/9°/11°/13° |
3°/6°/9°/11°/13° |
3°/6°/9°/11°/13° |
|
Overall Dimensions(mm) |
6600*3800*800 |
6600*4400*800 |
6600*6500*800 |
6600*9200*800 |
|
Ground clearance(mm) |
＞300 |
＞300 |
＞300 |
＞300 |
|
Working speed(km/h) |
7-9km/h |
7-9km/h |
7-9km/h |
7-9km/h |
|
Theoretical work efficiency(ha/h) |
2.0 |
2.8 |
3.5 |
5.0 |
|
Matched power(HP) |
90-100 |
100-120 |
120-140 |
150-180 |
|
Weight (kg) |
2200 |
2500 |
3000 |
3900 |
