Description

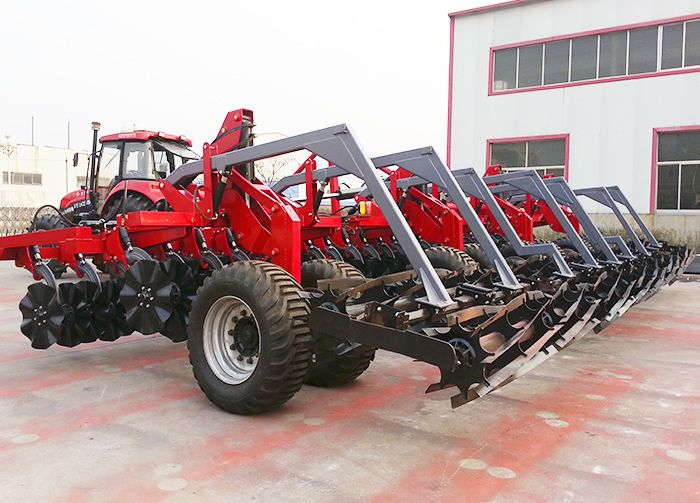

1LZ-12 Combined Cultivator
It is farmland stubble soil preparation equipment, especially matched with tractor. The discs cutting the stubble and grass, breaking up the soil, rolling and milling clods, pressing down the soil surface. It can achieve the results of topsoil crushing, leveling, pressed down when working. It with reasonable structure and easy to use.
|
Model |
Number of disc |
Size of disc (mm) |
Working width (mm) |
Working depth (mm) |
Weight (kg) |
Matched tractor (hp) |
Tyre size |
Overall size (mm) |
work efficiency (Mu/hour) |
|
1LZ-12 |
108 |
560x5 |
12000 |
150-180 |
20000 |
400-500 |
550 /45-22.5 |
9100x7000x5000 (Transportation) |
270 |
|
9100x128000x2200 (Working) |
