Description

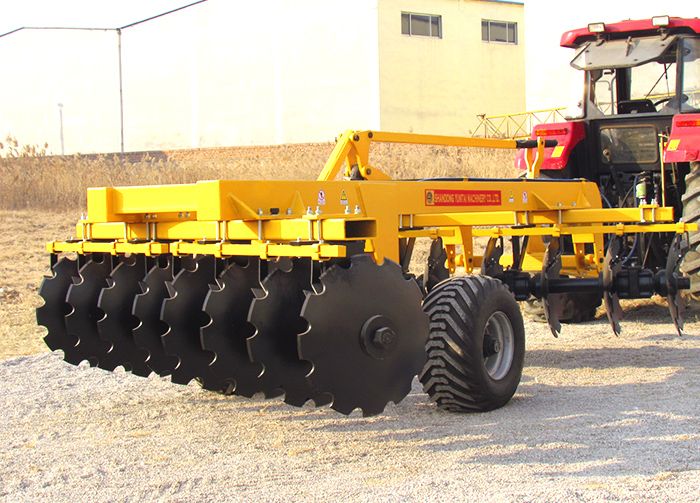

1BZZ Hydraulic Pressure Offset Heavy Duty Disc Harrow
Applicable to wasteland, swamp shrub land, heavy soil and stubble land before ploughing, breaking clods after ploughing, loose soil, can replace the plough on the mature land to carry out the soil ploughing operation
Model
Number of disc
Size of disc
Working width (mm)
Working depth (mm)
Weight (kg)
Matched tractor (hp)
Overall size
(mm)
1BZZ-16
16
760X8
2800
200-280
3600
150-180
7800X3500X1300
1BZZ-20
20
760X8
3400
200-280
3920
180-200
7900X4100X1300
1BZZ-24
24
760X8
4000
200-280
4420
200-240
8200X5000X1300
1BZZX-20
20
810X10
3300
200-300
4250
180-220
7900X4100X1300
1BZZX-24
24
810X10
3900
200-300
4800
200-300
8200X5000X1300
1BZZX-28
28
810X10
4500
200-300
5300
200-300
8200X5000X1300
