Description

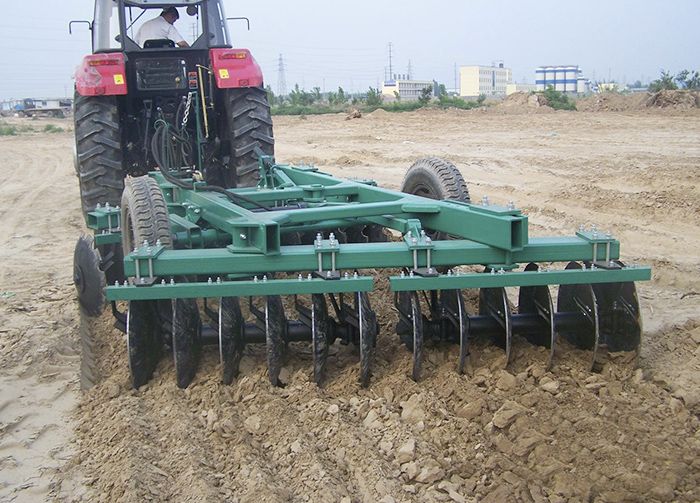

1BZX Hydraulic Pressure Offset Heavy Duty Disc Harrow
This harrow has high harrowing capacity with reasonable utilization of power, great ability to cut and shatter the soil, level soil surface and loosen soil after harrowing, being well adaptable for heavy clay soil wasteland and weedy fields as well. This harrow has been adopted combined structure whose rigid frame is welded with rectangular tube, equipped with hydraulic up and down road wheel spring leveling device and tapered roller bearings and square/round inner hole special for disc harrow. Therefore this machine is easy to move with small turning radius simple to be adjusted and maintained.
|
Model |
1BZX-2.0 |
1BZX-2.2 |
1BZX-2.35 |
1BZX-2.5 |
1BZX-3.0 |
1BZX-3.5 |
|
Number of disc |
18 |
20 |
22 |
24 |
28 |
32 |
|
Diameter of disc(mm) |
660*6 |
|||||
|
Working width(mm) |
2000 |
2200 |
2350 |
2500 |
3000 |
3500 |
|
Weight (kg) |
1740 |
2050 |
2150 |
2250 |
2450 |
2950 |
|
Tractor(hp) |
85-95 |
95-100 |
100-130 |
130-160 |
140-180 |
180-250 |
|
Disc spacing |
9"(230mm) |
|||||
|
Axle size |
Square or round 1.4/7"(40mm) |
|||||
|
Depth cut |
7"-8.5/8"(180-220mm) |
|||||
|
Bearing Assembly |
Grease or oil bath |
|||||
