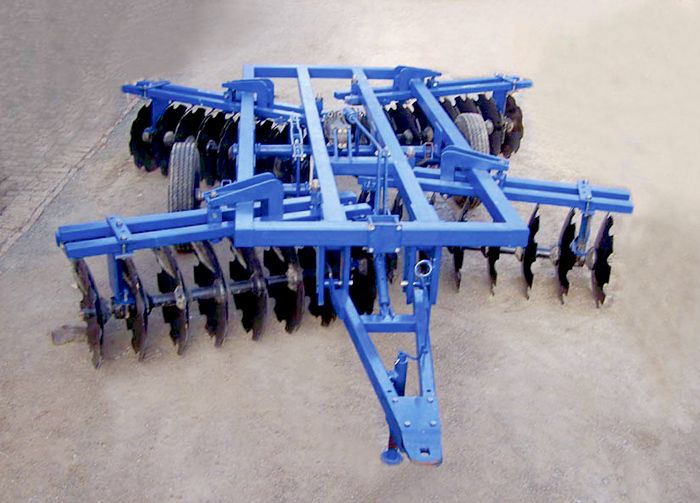

1BZD Hydraulic Pressure Pair Setting Heavy Duty Disc Harrow
Applicable for breaking up the clods and loosening of wasteland, shrub swamp, heavy soil, can rake the land instead of plough.and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.
|
Model |
1BZD-2.7 |
1BZD-3.2 |
1BZD-3.5 |
|
Number of disc |
24 |
28 |
32 |
|
Diameter of disc(mm) |
660 |
660 |
660 |
|
Working width(mm) |
2700 |
3200 |
3500 |
|
Working depth(mm) |
200-220 |
200-220 |
200-220 |
|
Weight (kg) |
2100 |
2500 |
3000 |
|
Tractor(hp) |
100-120 |
100-120 |
120-150 |
