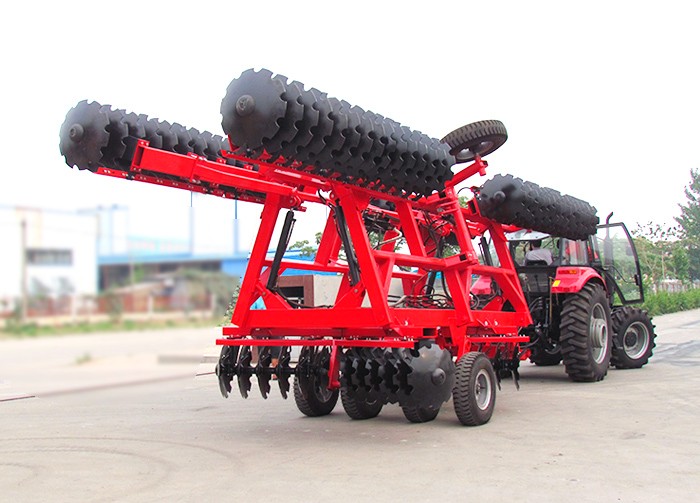

1BZD Hydraulic Folding Heavy Duty Disc Harrow
The 1BZD heavy duty disc harrow is used for stubble ploughing, hopping the plant residues prior of cultivation and very effectively on the heavy soils where other disc harrow can not operate. It is easy to transport the machine from one field to another by assistance of hydraulic lifted wheels on the equipment. On the field, corner turnings became faster by the assistance of the hydraulic lifters operated from tractor cabin. lt is easy to adjust the working depth by the up and down movement of the wheels.
|
Model |
1BZD-6.5 |
1BZD-7.5 |
1BZD-8.5 |
1BZD-9.0 |
1BZD-9.5 |
|
Number of disc |
64 |
72 |
80 |
84 |
88 |
|
Diameter of disc(mm) |
660 |
||||
|
Working width(mm) |
6500 |
7500 |
8500 |
9000 |
9500 |
|
Working depth(mm) |
180-220 |
||||
|
Weight (kg) |
7000 |
7200 |
7500 |
7650 |
8300 |
|
Tractor(hp) |
300 |
350 |
400 |
400 |
500 |
