Description

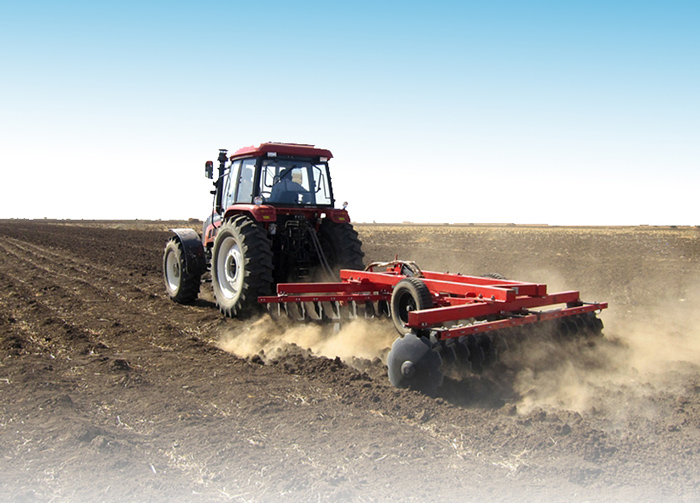

1BZ Hydraulic Pressure Offset Heavy Duty Disc Harrow
1BZ dragging off-set heavy duty disc harrow is designed for field work as crop residue processing before tillage, Breaking hardened and impervious solid surface, crushing and spreading straw, shattering soil after tillage, planning the land and preserving soil moisture, it can be used on cultivated land for tillage harrow instead of ploughing.
|
Model |
1BZ-1.8 |
1BZ-2.0 |
1BZ-2.2 |
1BZ-2.5 |
1BZ-3.0 |
1BZ-3.5 |
|
Number of disc |
16 |
18 |
20 |
24 |
28 |
32 |
|
Size of disc(mm) |
660*5 |
|||||
|
Working width(mm) |
1800 |
2000 |
2200 |
2500 |
3000 |
3500 |
|
Linkage |
Tractor trailed |
|||||
|
Working depth(mm) |
180-220 |
|||||
|
Weight (kg) |
1100 |
1200 |
1380 |
1510 |
1650 |
1890 |
|
Tractor(hp) |
70-80 |
80-90 |
100-120 |
120-150 |
150-180 |
180-25 |
