Description

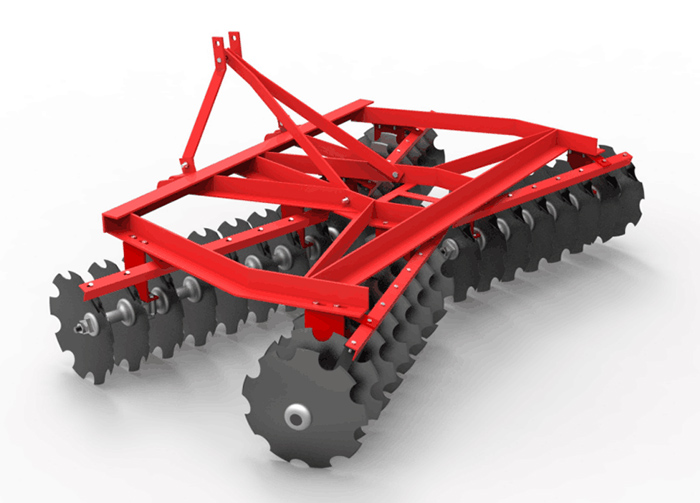

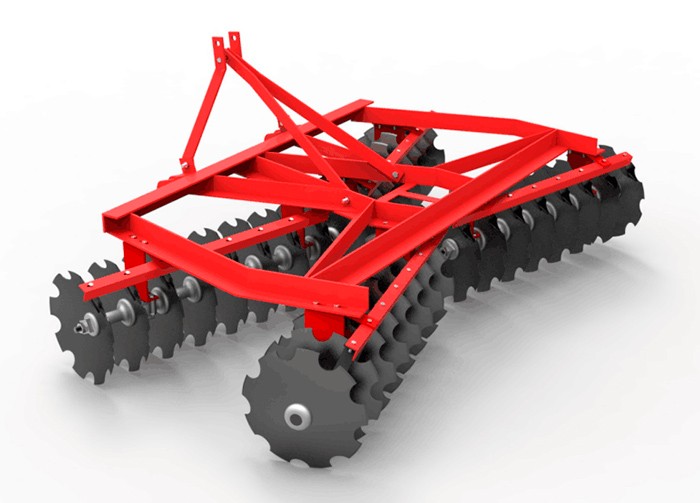

1BQDX Hanging Pair Setting Light Duty Disc Harrow
Mainly applicable for breaking up the clods of farmland, light and medium soil after furrow and loosening soil and mixing soil and fertilizer before sowing. With simple structure strong ability to rake; durable, easy to use and maintenance ,etc., meeting the requirements of intensive cultivation.
Model
Number of discs
Size of disc
(mm)
Working width (mm)
Working depth (mm)
Weight
(Kg)
Matched power (HP)
1BQDX-1.25
16
460X4
1250
50-150
301
35-40
1BQDX-1.6
20
460/510X4
1600
50-150
364-380
44-50
1BQDX-1.95
24
460/510X4
1950
50-150
407-430
50-60
1BQDX-2.3
28
460/510X4
2300
50-150
459-487
60-75
1BQDX -2.65
32
460/510X4
2650
50-150
487-519
75-85
1BQDX-3.0
36
460/510X4
3000
50-150
530-600
85-100
